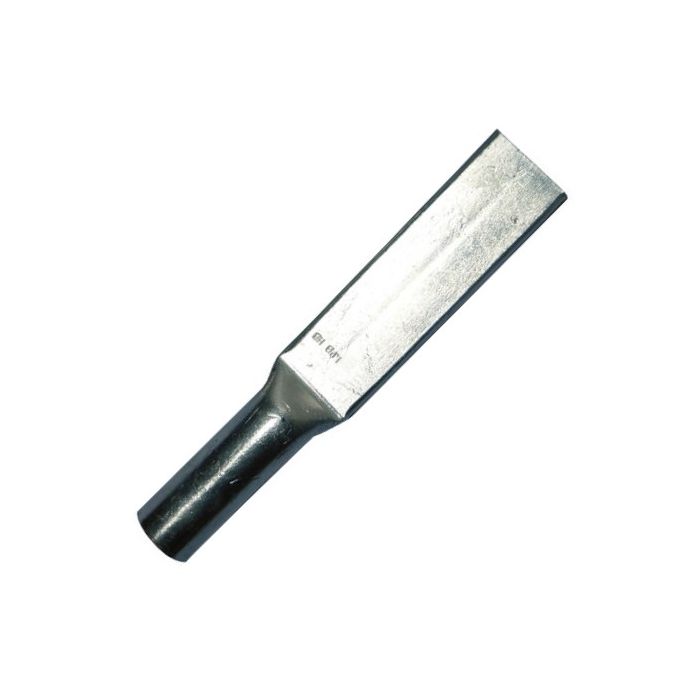

Cabac Crimp Lug Long Barrel Long Palm Copper Heavy Duty 185mm Blank Palm 174mm OAL
Cabac Crimp Lug Long Barrel Long Palm Copper Heavy Duty 185mm Blank Palm 174mm OAL
In stock
SKU
CAACAL185LPBHD
Crimp Lug, Long Barrel, Long Palm, Copper Heavy Duty, 185 mm Conductor, Blank Palm For Custom Drilling, Long Barrel, 64mm Barrel, Long Sealed Palm, 174 mm Overall Length, Inside Diameter: 18.4 mm, 35 mm Lug Width, 10.2 mm Lug Thickness, 100 mm Lug Length, A/F Hex Die: 23.1 mm, Crimping Die: HT130-C-240, Number of Crimps: 2, 200 MPa, Annealed Copper Body,Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Long Barrel Long Palm Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CAL185LPBHD |
| A-F Hex Die | 23.1 mm |
| Barrel Length | 64 mm |
| Barrel Type | Long |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 185 mm |
| Crimping Die | HT130-C-240 |
| Finish | Tin Electroplated |
| Inside Diameter | 18.4 mm |
| Lug Length | 100 mm |
| Lug Thickness | 10.2 mm |
| Lug Width | 35 mm |
| Number of Crimps | 2 |
| Overall Length | 174 mm |
| Palm Type | Long Sealed |
| Product Type | Lugs Long Barrel |
| Stud Size | Blank Palm For Custom Drill inchg |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
Crimp Lug, Long Barrel, Long Palm, Copper Heavy Duty, 185 mm Conductor, Blank Palm For Custom Drilling, Long Barrel, 64mm Barrel, Long Sealed Palm, 174 mm Overall Length, Inside Diameter: 18.4 mm, 35 mm Lug Width, 10.2 mm Lug Thickness, 100 mm Lug Length, A/F Hex Die: 23.1 mm, Crimping Die: HT130-C-240, Number of Crimps: 2, 200 MPa, Annealed Copper Body,Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C
