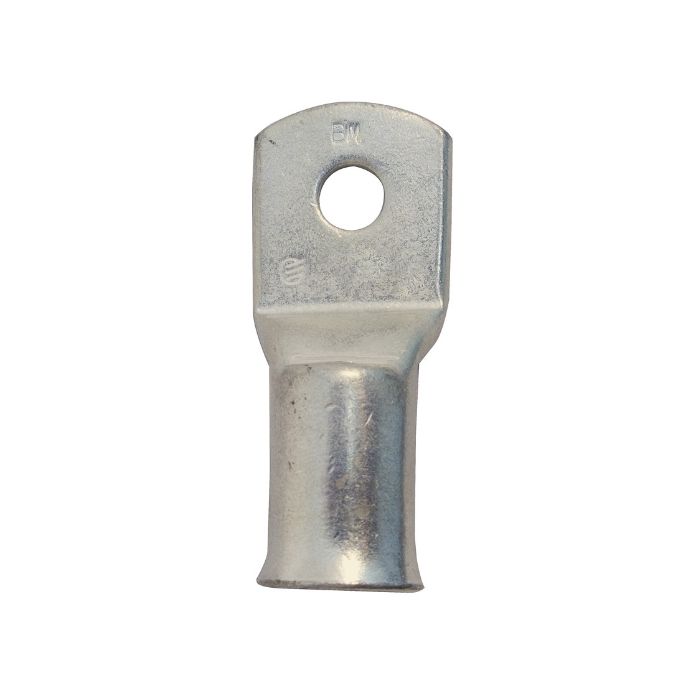

Cabac Crimp Lug Bell Mouth Copper 120mm M12 Stud 64mm OAL
Cabac Crimp Lug Bell Mouth Copper 120mm M12 Stud 64mm OAL
In stock
SKU
CAACAL120-12BM
Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy. At the top end of the cable diameter range (around 150 to 240 sq-mm ) some manufacturers cables will not fit into the nominal lug.
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Bell Mouth Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CAL120-12BM |
| A-F Hex Die | 16.5 mm |
| Barrel Length | 30 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 120 mm |
| Crimping Die | HT130-C-120 |
| Finish | Tin Electroplated |
| Inside Diameter | 15.6 mm |
| Lug Length | 26 mm |
| Lug Thickness | 5 mm |
| Lug Width | 29 mm |
| Number of Crimps | 1 Round/2 Compact |
| Number of Holes | 1 |
| Overall Length | 64 mm |
| Stud Size | M12 |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
Description
Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy. At the top end of the cable diameter range (around 150 to 240 sq-mm ) some manufacturers cables will not fit into the nominal lug.
