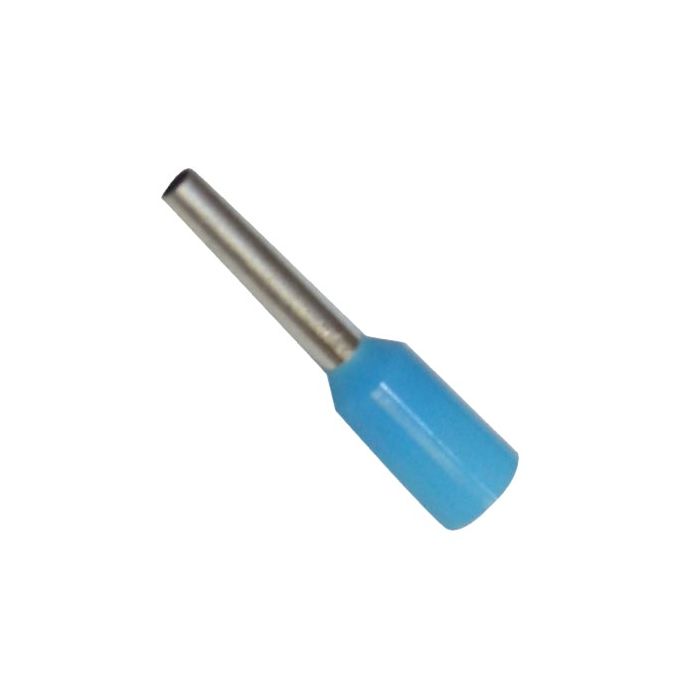

Cabac Bootlace Ferrule Insulated 0.75mm 1.5x8mm Pin 14mm OAL Blue
Cabac Bootlace Ferrule Insulated 0.75mm 1.5x8mm Pin 14mm OAL Blue
In stock
SKU
CAABLP075
Insulated Bootlace Ferrule, 0.75 mm, 1 Conductors, 8 mm Pin Length, 1.5 mm Pin Diameter, 3.8 mm Collar Inside Diameter, HNKE12/HNKE3/HNKE6/HNKE5/HNKE9/HNKE10/HNKE11, 14 mm Overall Length, Copper Sleeve, Nylon Insulation, Blue Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 100 Pack
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Pre-Insulated Terminals |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | BLP075 |
| Collar Inside Diameter | 3.8 mm |
| Conductor Size | 0.75 mm |
| Contact Material | Copper |
| Crimping Die | HNKE12/HNKE3/HNKE6/HNKE5/HNKE9/HNKE10/HNKE11 |
| Finish | Tin Plated |
| Insulation Material | Nylon |
| Insulation Colour | Blue |
| Number of Conductors | 1 |
| Overall Length | 14 mm |
| Pack Size | 100 Pack |
| Pin Diameter | 1.5 mm |
| Pin Length | 8 mm |
| Sleeve Material | Copper |
| Temperature | -55 to 105 deg C |
Description
Insulated Bootlace Ferrule, 0.75 mm, 1 Conductors, 8 mm Pin Length, 1.5 mm Pin Diameter, 3.8 mm Collar Inside Diameter, HNKE12/HNKE3/HNKE6/HNKE5/HNKE9/HNKE10/HNKE11, 14 mm Overall Length, Copper Sleeve, Nylon Insulation, Blue Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 100 Pack
