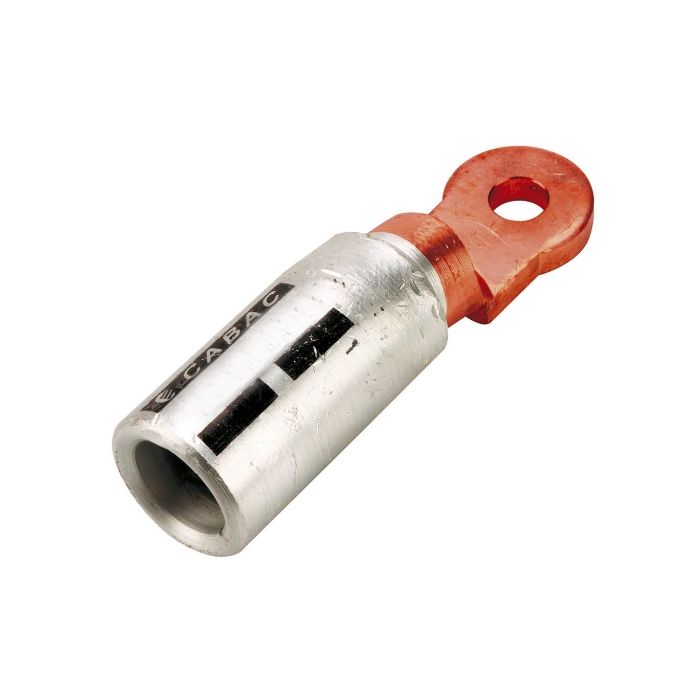

Cabac Crimp Lug Standard Type B Bi-Metal 630mm Blank Palm 175mm OAL
Cabac Crimp Lug Standard Type B Bi-Metal 630mm Blank Palm 175mm OAL
In stock
SKU
CAABL630
Crimp Lug, Standard, Type B Bi-Metal, 630 mm Conductor, Blank Palm For Custom Drilling, Standard Barrel, Barrel Length: 60 mm, Palm Type: Square, 175 mm Overall Length, Bi-Metal Body, Conductive Material: Aluminium Barrel/Copper Palm, Tin Electroplated Finish, -40 to 100 deg C, Number of Strands: 127/2.52, Inside Diameter: 34 mm, 65 mm Lug Length, 60 mm Lug Width, 10.5 mm Lug Thickness, A/F Hex Die: 43.2 mm, Crimping Die: RHU520-800, Tensile Strength: 110 MPa
| Features |
|
|---|---|
| Brand | Cabac |
| Range Name | Standard Lugs Bi-Metal |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | BL630 |
| A-F Hex Die | 43.2 mm |
| Barrel Length | 60 mm |
| Barrel Type | Standard |
| Body Material | Bi-Metal |
| Conductive Material | Aluminium Barrel/Copper Palm |
| Conductor Size | 630 mm |
| Crimping Die | RHU520-800 |
| Finish | Tin Electroplated |
| Inside Diameter | 34 mm |
| Lug Length | 65 mm |
| Lug Thickness | 10.5 mm |
| Lug Width | 60 mm |
| Number of Strands | 127/2.52 |
| Overall Length | 175 mm |
| Palm Type | Square |
| Product Type | Lugs Standard |
| Stud Size | Blank Palm For Custom Drill inchg |
| Temperature | -40 to 100 deg C |
| Tensile Strength | 110 MPa |
Description
Crimp Lug, Standard, Type B Bi-Metal, 630 mm Conductor, Blank Palm For Custom Drilling, Standard Barrel, Barrel Length: 60 mm, Palm Type: Square, 175 mm Overall Length, Bi-Metal Body, Conductive Material: Aluminium Barrel/Copper Palm, Tin Electroplated Finish, -40 to 100 deg C, Number of Strands: 127/2.52, Inside Diameter: 34 mm, 65 mm Lug Length, 60 mm Lug Width, 10.5 mm Lug Thickness, A/F Hex Die: 43.2 mm, Crimping Die: RHU520-800, Tensile Strength: 110 MPa
