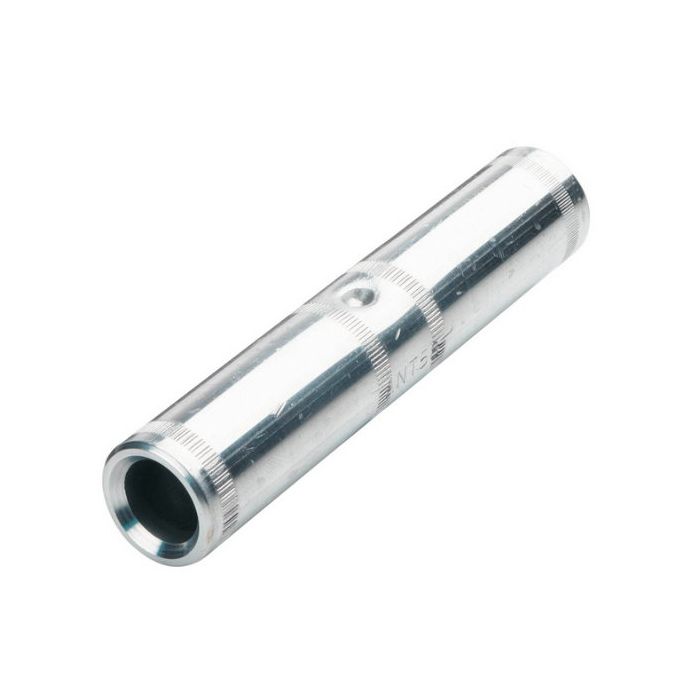

Cabac Non-Tension Sleeve 7/3.75 77.3mm Mars Helium
Cabac Non-Tension Sleeve 7/3.75 77.3mm Mars Helium
In stock
SKU
CAAANT50
Non-Tension Sleeve, 77.3 mm, Number of Strands: 7/3.75 AAC/AAAC, AAC Conductor Name: Mars, AAAC Conductor Name: Helium, Aluminium, 12.6mm Inside Diameter, 11.25mm Conductor Outside Diameter, 85 mm Length, A/F Hex Die: 16.8 mm, Crimping Die: HT-16.8AL, 2 Crimps Overlap
| Features |
|
|---|---|
| Brand | Cabac |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ANT50 |
| AAAC Conductor Name | Helium |
| AAC Conductor Name | Mars |
| Conductor Outside Diameter | 11.25mm |
| Conductor Size | 77.3 mm |
| Crimping Die | HT-16.8AL |
| Inside Diameter | 12.6mm |
| Length | 85mm |
| Number of Crimps | 2 Overlap |
| Number of Strands | 7/3.75 AAC/AAAC |
| Product Type | Tension Sleeves |
Description
Non-Tension Sleeve, 77.3 mm, Number of Strands: 7/3.75 AAC/AAAC, AAC Conductor Name: Mars, AAAC Conductor Name: Helium, Aluminium, 12.6mm Inside Diameter, 11.25mm Conductor Outside Diameter, 85 mm Length, A/F Hex Die: 16.8 mm, Crimping Die: HT-16.8AL, 2 Crimps Overlap
