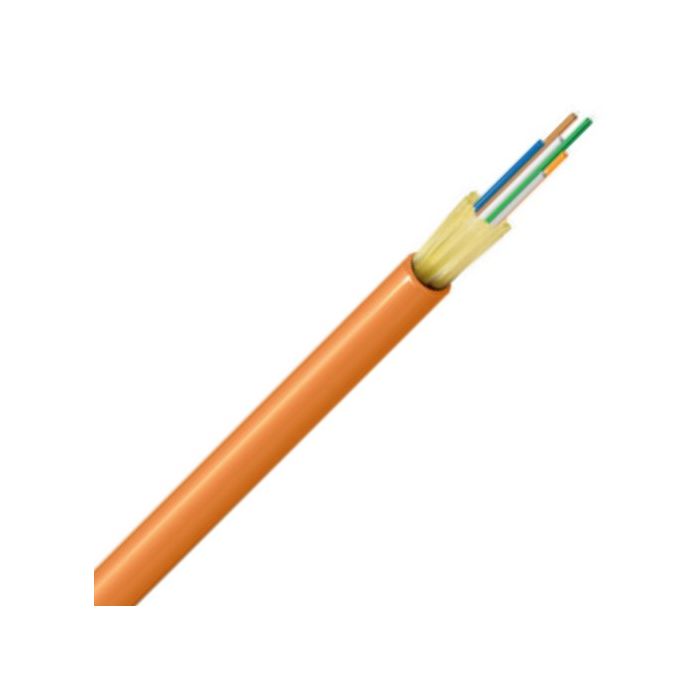

Belden Fibre Optic Distribution Riser Cable Multimode Indoor/Outdoor Dry-Block OM1 4 Fibre LSZH Orange 100M
Belden Fibre Optic Distribution Riser Cable Multimode Indoor/Outdoor Dry-Block OM1 4 Fibre LSZH Orange 100M
In stock
SKU
BELGUMT104.002100
Fibre Optic Cable Distribution Riser Cable Multimode Indoor/Outdoor, Fibre Optic Riser Cable 4 Core Multimode OM1, 1.2 dB/km at 1300 nm, 3.4 dB/km at 850 nm Attenuation, During Installation: 108mm, During Operation: 54mm Bend Radius, Fibre Count: 4, OM1 Fibre, Multimode Fibre, 62.5 um Fibre Core Diameter, During Operation: 400 N Tensile Strength, LSZH Sheath, Orange Sheath,-30 to 70 deg C, 100 mtr Length, 5.4mm Outside Diameter
| Brand | Belden |
|---|---|
| Standard Pack Size | 2100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | GUMT104.002100 |
| Attenuation | 1.2 dB/km at 1300 nm/3.4 dB/km at 850 nm |
| Bend Radius | During Installation: 108mm/During Operation: 54mm |
| Fibre Count | 4 |
| Fibre Mode | Multimode |
| Fibre Core Diameter | 62.5 µm |
| Fibre Type | OM1 |
| Product Type | Fibre Optic Riser |
| Outside Diameter | 5.4mm |
| Sheath Colour | Orange |
| Sheath Material | LSZH |
| Temperature | -30 to 70 deg C |
| Tensile Strength | During Operation: 400 N |
Description
Fibre Optic Cable Distribution Riser Cable Multimode Indoor/Outdoor, Fibre Optic Riser Cable 4 Core Multimode OM1, 1.2 dB/km at 1300 nm, 3.4 dB/km at 850 nm Attenuation, During Installation: 108mm, During Operation: 54mm Bend Radius, Fibre Count: 4, OM1 Fibre, Multimode Fibre, 62.5 um Fibre Core Diameter, During Operation: 400 N Tensile Strength, LSZH Sheath, Orange Sheath,-30 to 70 deg C, 100 mtr Length, 5.4mm Outside Diameter
