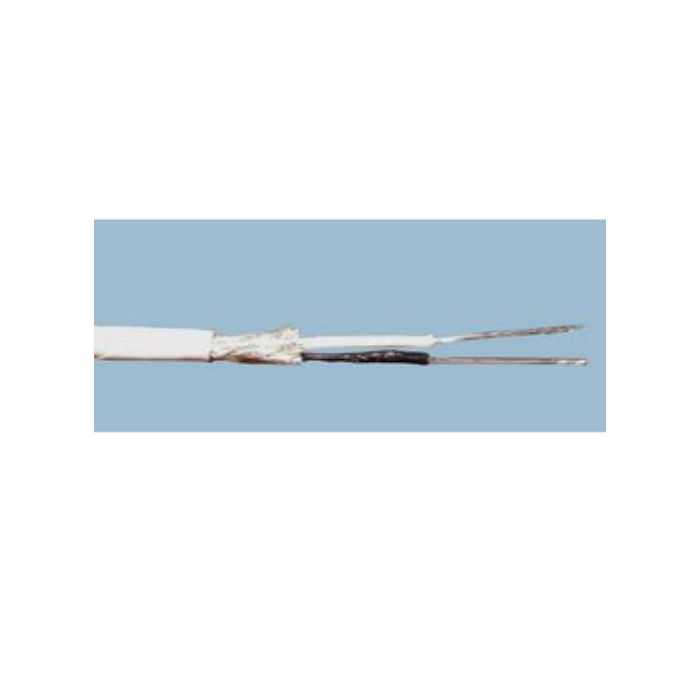

Belden 22 AWG 1 Pair Chrome Data Cable Overall Screened Polyethylene/PVC
Belden 22 AWG 1 Pair Chrome Data Cable Overall Screened Polyethylene/PVC
In stock
SKU
BEL87610601000
Data Cable, 22 AWG, Tinned Annealed Copper, 0.3 kV, 2.9 Amp, 1 Pair, 7x30 Strands, Overall Screened Screen, 4.445 mm Overall Diameter, 46 mm Bend Radius, 0.43 mm Insulation Thickness, 0.64 mm Sheath Thickness, 27.3 lbs Pulling Tension, 18.2 Ohm/1000ft Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Clear Core, Polyethylene Insulation, PVC Sheath, Chrome Sheath, -20 to 60 deg C, UL 1685 UL Loading IEC 60332-1-2
| Brand | Belden |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 8761 0601000-NLA |
| Bend Radius | 46 mm |
| Conductor Resistance | 18.2 Ohm/1000ft |
| Conductor Type | Tinned Annealed Copper |
| Core Colours | Black/Clear |
| Conductor Size | 22 AWG |
| Current | 2.9 Amp |
| Insulation Material | Polyethylene |
| Insulation Thickness | 0.43 mm |
| Number of Pairs | 1 Pair |
| Overall Diameter | 4.445 mm |
| Product Type | Data Cable |
| Screen Coverage | 100% |
| Pulling Tension | 27.3 lbs |
| Sheath Colour | Chrome |
| Screen Material | Aluminium/Polyester Tape |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Standards | UL 1685 UL Loading IEC 60332-1-2 |
| Sheath Thickness | 0.64 mm |
| Stranding | 7x30 |
| Voltage | 0.3 kV |
| Temperature | -20 to 60 deg C |
Description
Data Cable, 22 AWG, Tinned Annealed Copper, 0.3 kV, 2.9 Amp, 1 Pair, 7x30 Strands, Overall Screened Screen, 4.445 mm Overall Diameter, 46 mm Bend Radius, 0.43 mm Insulation Thickness, 0.64 mm Sheath Thickness, 27.3 lbs Pulling Tension, 18.2 Ohm/1000ft Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Clear Core, Polyethylene Insulation, PVC Sheath, Chrome Sheath, -20 to 60 deg C, UL 1685 UL Loading IEC 60332-1-2
