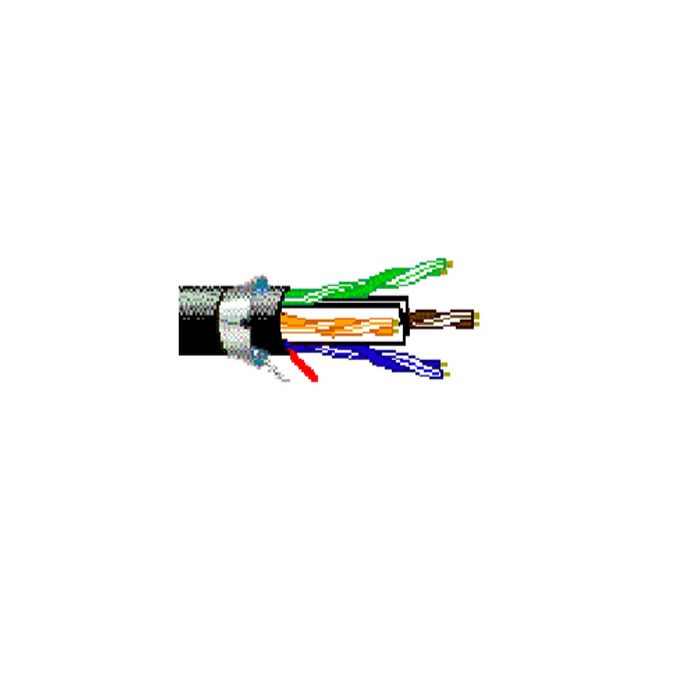

Belden 7953A Data Cable Cat6 Multi-Conductor DataTuff 4 Pair 23AWG Polypropylene/PVC Black
Belden 7953A Data Cable Cat6 Multi-Conductor DataTuff 4 Pair 23AWG Polypropylene/PVC Black
In stock
SKU
BEL7953A0101000
CAT 6 Data Cable, 300 Volt, Solid, 23 AWG, 8.2 Ohm/100m Conductor Resistance, 250 MHz Frequency Bandwidth, Aluminium Foil/Polyester Tape 100% Coverage, Cat 6, 4 Pair, 4 in Bend Radius, 40 lbs Max. Pulling Force, Bare copper Conductor, Polypropylene Insulation, PVC Sheath, Black Sheath, 40 to 75 deg C, 1000 ft Length, 0.335 in Outside Diameter
| Brand | Belden |
|---|---|
| Range Name | Inca |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | EA |
| Vendor Product | 7953A 0101000 |
| Bend Radius | 4 inch |
| Cable Type | Cat 6 |
| Conductor Material | Bare copper |
| Conductor Resistance | 8.2 Ohm/100m |
| Conductor Size | 23 AWG |
| Conductor Type | Solid |
| Frequency Bandwidth | 250 MHz |
| Insulation Material | Polypropylene |
| Length | 1000 ft |
| Max. Pulling Force | 40 lbs |
| Outside Diameter | 0.335 inch |
| Pair Count | 4 Pair |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Shielded Type | Aluminium Foil/Polyester Tape 100% Coverage |
| Temperature | 40 to 75 deg C |
| Voltage | 300 Volt |
Description
CAT 6 Data Cable, 300 Volt, Solid, 23 AWG, 8.2 Ohm/100m Conductor Resistance, 250 MHz Frequency Bandwidth, Aluminium Foil/Polyester Tape 100% Coverage, Cat 6, 4 Pair, 4 in Bend Radius, 40 lbs Max. Pulling Force, Bare copper Conductor, Polypropylene Insulation, PVC Sheath, Black Sheath, 40 to 75 deg C, 1000 ft Length, 0.335 in Outside Diameter
