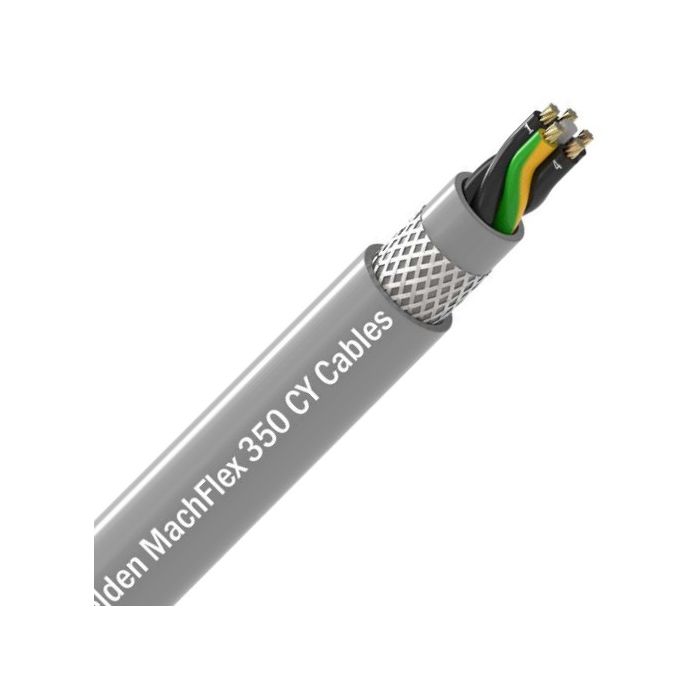

Belden MachFlex 350CY Instrumentation Cable Unarmoured 4 Core & Earth Overall Screened 2.5mm PVC/TCBS/PVC Grey
Belden MachFlex 350CY Instrumentation Cable Unarmoured 4 Core & Earth Overall Screened 2.5mm PVC/TCBS/PVC Grey
In stock
SKU
BEL5G2.5CY368500M
Instrumentation Cable, Unarmoured, 4 Core & Earth, Overall Screened, 2.5 mm, Bare Copper, 0.3/0.5 kV, 12.9 mm Overall Diameter, Bend Radius: Static - 77.4 mm Flexible - 258 mm, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Black & Numbered Green/Yellow Cores, Grey RAL 7001 Sheath, Static - -40 to 80 deg C Flexible - -30 to 70 deg C, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, EN 50525-2-51, VDE 0281-13, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, RoHS, REACH & CE Directives
| Brand | Belden |
|---|---|
| Range Name | Machflex |
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5G2.5CY 368500M |
| Conductor Size | 2.5 mm |
| Conductor Type | Bare Copper |
| Bend Radius | Static: 77.4 mm Flexible: 258 mm |
| Core Colours | Green/Yellow/Black Numerals |
| Insulation Material | PVC |
| Overall Diameter | 12.9 mm |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Grey |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Standards | DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 DIN VDE 0207-363-4-1 IEC 60227-5 EN 50525-2-51 VDE 0281-13 DIN VDE 0482?332?1?2 DIN EN 60332?1?2 RoHS REACH & CE Directives |
| Voltage | 0.3-0.5 kV |
| Temperature | Static: -40 to 80 deg C Flexible: -30 to 70 deg C |
Description
Instrumentation Cable, Unarmoured, 4 Core & Earth, Overall Screened, 2.5 mm, Bare Copper, 0.3/0.5 kV, 12.9 mm Overall Diameter, Bend Radius: Static - 77.4 mm Flexible - 258 mm, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Black & Numbered Green/Yellow Cores, Grey RAL 7001 Sheath, Static - -40 to 80 deg C Flexible - -30 to 70 deg C, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, EN 50525-2-51, VDE 0281-13, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, RoHS, REACH & CE Directives
