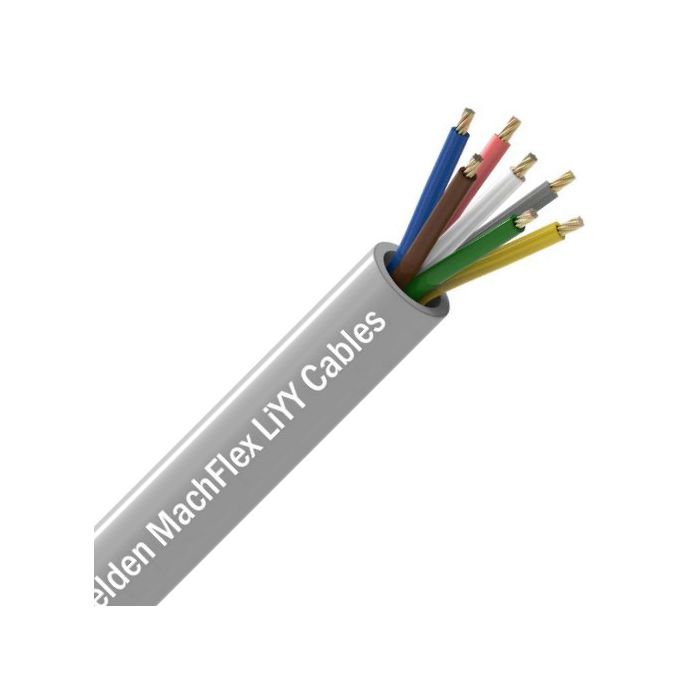

Belden MachFlex LiYY Instrumentation Cable Unarmoured 3 Core Unscreened 0.5mm 350/500V PVC/PVC Grey
Belden MachFlex LiYY Instrumentation Cable Unarmoured 3 Core Unscreened 0.5mm 350/500V PVC/PVC Grey
In stock
SKU
BEL3C0.5YY-F2V500M
Instrumentation Cable, Unarmoured, 3 Core, Unscreened, 0.5 mm, Bare Copper, 350/500 Volt, 5 mm Overall Diameter, Bend Radius: Static - - 30 mm Flexible - 75 mm, Insulation Resistanc: >20 GOhm/cm, PVC Insulation, PVC Sheath, Grey RAL 7032 Sheath, Static - -40 to 80 deg C Flexible - -5 to 70 deg C, VDE 0812, DIN 47100, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290?2?22, DIN VDE 0207?363?4?1, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, IEC 60332?1?2, RoHS, REACH & CE Directives
| Brand | Belden |
|---|---|
| Range Name | Machflex |
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3C0.5YY F2V500M |
| Bend Radius | Static 30 mm/Flexible 75 mm |
| Conductor Size | 0.5 mm |
| Conductor Type | Bare Copper |
| Insulation Material | PVC |
| Insulation Resistance | >20 GOhm/cm |
| Overall Diameter | 5 mm |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Format | Unscreened |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Standards | VDE 0812 DIN 47100 DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290?2?22 DIN VDE 0207?363?4?1 DIN VDE 0482?332?1?2 DIN EN 60332?1?2 IEC 60332?1?2 RoHS REACH & CE Directives |
| Temperature | Static: -40 to 80 deg C Flexible: -5 to 70 deg C |
| Voltage | 350-500 Volt |
Description
Instrumentation Cable, Unarmoured, 3 Core, Unscreened, 0.5 mm, Bare Copper, 350/500 Volt, 5 mm Overall Diameter, Bend Radius: Static - - 30 mm Flexible - 75 mm, Insulation Resistanc: >20 GOhm/cm, PVC Insulation, PVC Sheath, Grey RAL 7032 Sheath, Static - -40 to 80 deg C Flexible - -5 to 70 deg C, VDE 0812, DIN 47100, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290?2?22, DIN VDE 0207?363?4?1, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, IEC 60332?1?2, RoHS, REACH & CE Directives
