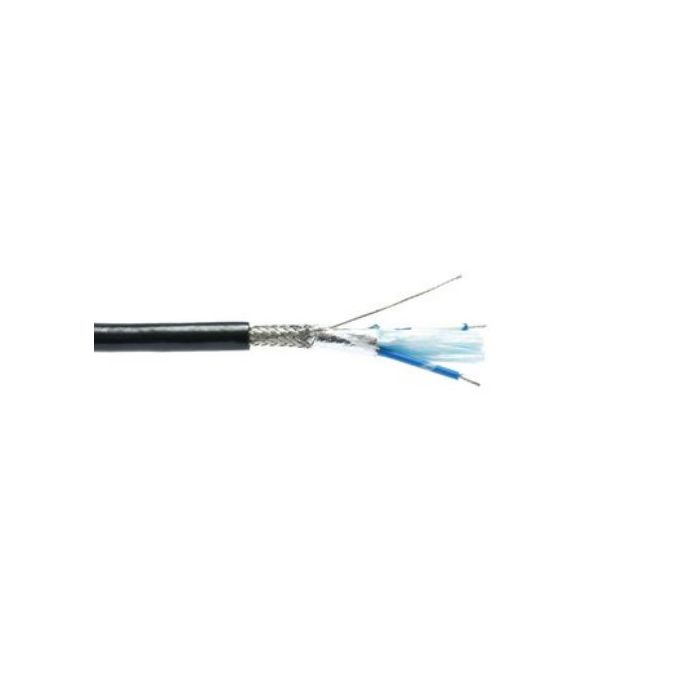

RS485 2PR 22AWG FHDPE OS+TCB PVC BK 305m
RS485 2PR 22AWG FHDPE OS+TCB PVC BK 305m
In stock
SKU
BEL3107A0101000
RS485 2PR 22AWG FHDPE OS+TCB PVC BK 305m
| Brand | Belden |
|---|---|
| Range Name | Inca |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | RO |
| Vendor Product | 3107A-0101000 |
| Conductor Resistance | DC: 14.7 Ohm/1000ft |
| Bend Radius | 3.5 in |
| Conductor Size | 22 AWG |
| Conductor Type | Tinned Annealed Copper |
| Current | 2.7 Amp |
| Insulation Material | Foam Polyethylene |
| Insulation Thickness | 0.025 in |
| Number of Pairs | 2 Pair |
| Overall Diameter | 0.35 in |
| Product Type | Data Cable |
| Please Note | RS485 |
| Pulling Tension | 80 lbs |
| Screen Format | Overall Screened |
| Screen Coverage | 65% |
| Screen Material | Tinned Copper Braid/Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Sheath Thickness | 0.053 in |
| Sheath Material | PVC |
| Standards | UL 1685 UL Loading IEC 60332-1-2 |
| Stranding | 7x30 |
| Temperature | -20 to 60 deg C |
| Voltage | 0.3 kV |
Description
RS485 2PR 22AWG FHDPE OS+TCB PVC BK 305m
