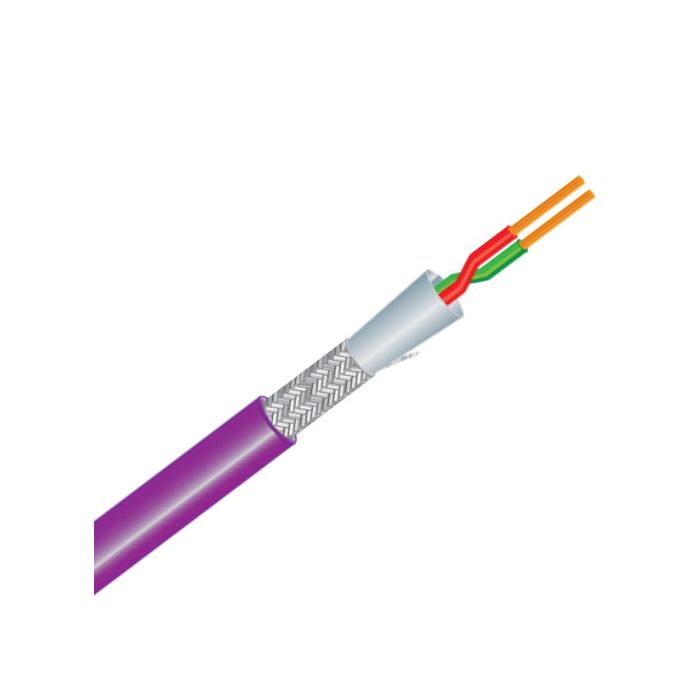

Belden Data Cable 1 Pair Overall Screened 22 AWG 0.3kV FRFPE/TCBS/AL/PVC Purple PROFIBUS
Belden Data Cable 1 Pair Overall Screened 22 AWG 0.3kV FRFPE/TCBS/AL/PVC Purple PROFIBUS
In stock
SKU
BEL3079ER305VT
Data Cable, PROFIBUS, 1 Pair, Overall Screened, 22 AWG, Bare Copper, 0.3 kV, 2.3 Amp, 7x30 Strands, 8.001 mm Overall Diameter, 81.28 mm Bend Radius, 222.41 N Pulling Tension, Conductor Resistance: DC - 52.496 Ohm/km, 65% Screen Coverage, Tinned Copper Braid Screen Aluminium/Polyester Tape, Flame Retardant Foam Polyethylene Insulation, PVC Sheath, Red & Green Cores, Purple Sheath, -30 to 75 deg C
| Brand | Belden |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3079E B021000 |
| Conductor Resistance | DC: 52.496 Ohm/km |
| Bend Radius | 81.28 mm |
| Conductor Size | 6 mm |
| Core Colours | Red/Green |
| Conductor Type | Bare Copper |
| Current | 2.3 Amp |
| Insulation Material | Flame Retardant Foam Polyethylene |
| Number of Pairs | 1 Pair |
| Overall Diameter | 8.001 mm |
| Product Type | Data Cable |
| Please Note | PROFIBUS |
| Pulling Tension | 222.41 N |
| Screen Format | Overall Screened |
| Screen Coverage | 65% |
| Screen Material | Tinned Copper Braid/Aluminium/Polyester Tape |
| Sheath Colour | Purple |
| Sheath Material | PVC |
| Stranding | 7x30 |
| Temperature | -30 to 75 deg C |
| Voltage | 0.3 kV |
Description
Data Cable, PROFIBUS, 1 Pair, Overall Screened, 22 AWG, Bare Copper, 0.3 kV, 2.3 Amp, 7x30 Strands, 8.001 mm Overall Diameter, 81.28 mm Bend Radius, 222.41 N Pulling Tension, Conductor Resistance: DC - 52.496 Ohm/km, 65% Screen Coverage, Tinned Copper Braid Screen Aluminium/Polyester Tape, Flame Retardant Foam Polyethylene Insulation, PVC Sheath, Red & Green Cores, Purple Sheath, -30 to 75 deg C
