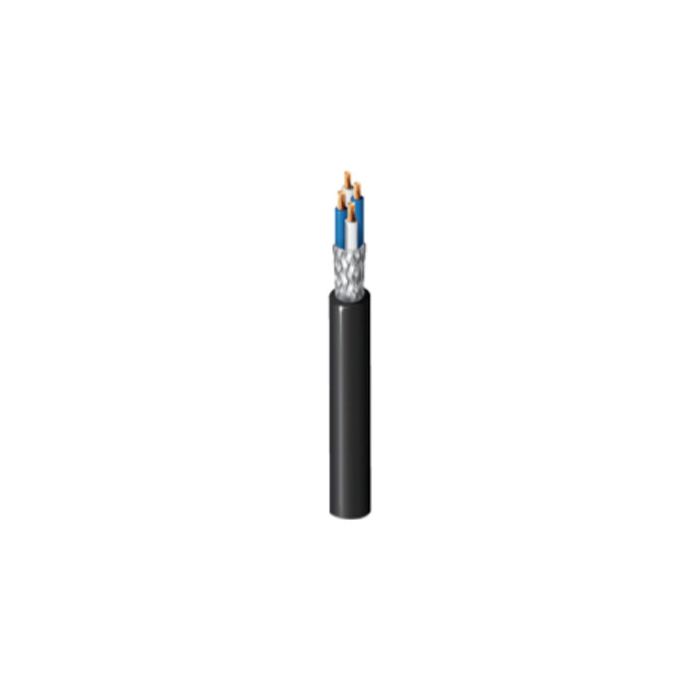

Belden Microphone Cable 24AWG 42 x 40 PE/PVC Black Gold 250V
Belden Microphone Cable 24AWG 42 x 40 PE/PVC Black Gold 250V
In stock
SKU
BEL1192AB591000
Microphone Cable, 100 Volt, 24 AWG, Soft Bare Copper, 0.024 in Conductor Diameter, Bend Radius: 2.5 in, 4 Core, Pulling Tension: 21 lb, Stranding: 42 x 40, Insulation Thickness: 0.016 in, Sheath Thickness: 0.044 in, Conductor Resistance: 26.6 Ohm/1000 ft, Capacitance: Conductors in Quad: 57.4 pF/ft; Conductor to Conductor: 39.2 pF/ft, 40 Ohm Impedance, Tinned Copper 95% Coverage Braid, Polyethylene Insulation, PVC Sheath, Black Sheath, 0.245 in Overall Diameter,-30 to 75 deg C
| Brand | Belden |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | 1192A B591000 |
| Temperature | 30 to 75 deg C |
| Product Type | simple |
Description
Microphone Cable, 100 Volt, 24 AWG, Soft Bare Copper, 0.024 in Conductor Diameter, Bend Radius: 2.5 in, 4 Core, Pulling Tension: 21 lb, Stranding: 42 x 40, Insulation Thickness: 0.016 in, Sheath Thickness: 0.044 in, Conductor Resistance: 26.6 Ohm/1000 ft, Capacitance: Conductors in Quad: 57.4 pF/ft; Conductor to Conductor: 39.2 pF/ft, 40 Ohm Impedance, Tinned Copper 95% Coverage Braid, Polyethylene Insulation, PVC Sheath, Black Sheath, 0.245 in Overall Diameter,-30 to 75 deg C
