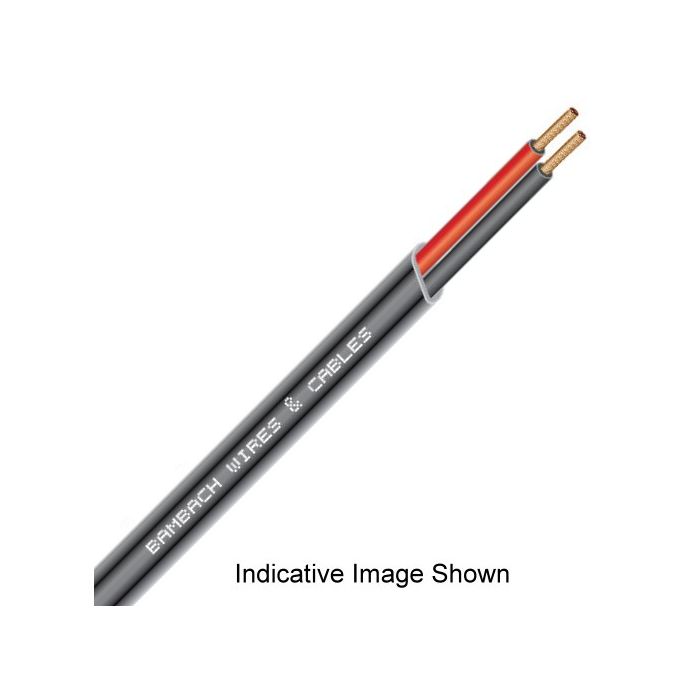

Bambach Automotive Cable Flat Double Insulated 2 Core 3mm PVC/PVC Black
Bambach Automotive Cable Flat Double Insulated 2 Core 3mm PVC/PVC Black
In stock
SKU
BAM25690BK
Automotive Cable Double Insulated Flat, 3 mm, Class 5 Annealed Copper, 32 Volt, 26 Amp, 2 Core, 19/0.45 mm Strands, 5.2 mm x 8.7 mm Overall Diameter, Red/Black Core, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, -10 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1
| Features |
|
|---|---|
| Brand | Bambach |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121800 |
| UOM | MTR |
| Vendor Product | 25690BK |
| Core Colours | Black/Red |
| Conductor Type | Class 5 Annealed Copper |
| Current | 26 Amp |
| Insulation Material | V-90HT PVC |
| Number of Cores | 2 Core |
| Product Type | Automotive Cable Double Insulated Flat |
| Sheath Colour | Black |
| Overall Diameter | 5.2 mm x 8.7 mm |
| Sheath Material | V-90HT PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1 |
| Temperature | -10 to 90 deg C |
| Stranding | 19/0.45 mm |
| Voltage | 32 Volt |
Description
Automotive Cable Double Insulated Flat, 3 mm, Class 5 Annealed Copper, 32 Volt, 26 Amp, 2 Core, 19/0.45 mm Strands, 5.2 mm x 8.7 mm Overall Diameter, Red/Black Core, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, -10 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1
