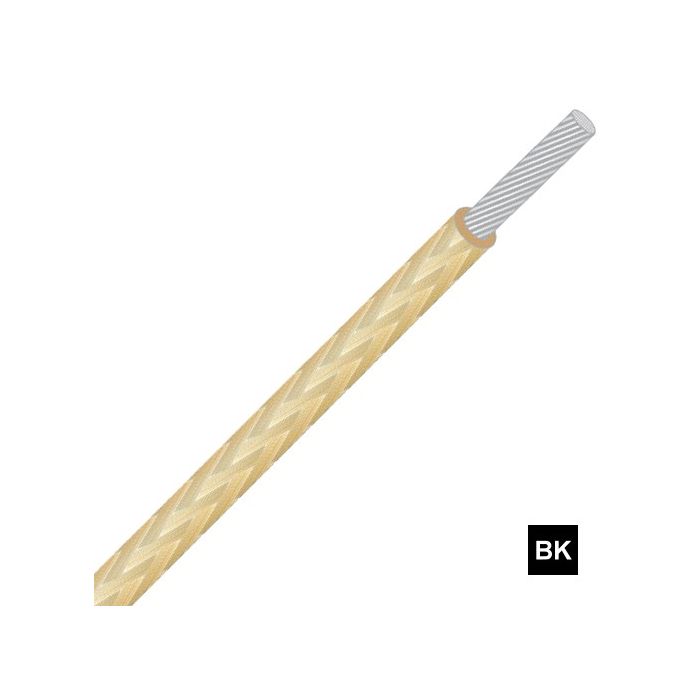

Bambach High Temperature Flexible Wire Single Insulated 1 Core 4mm 0.6/1kV Glass Braid +150C Black
Bambach High Temperature Flexible Wire Single Insulated 1 Core 4mm 0.6/1kV Glass Braid +150C Black
In stock
SKU
BAM22280BK
Flexible Wire, Single Insulated, High Temperature, 1 Core, 4 mm, Class 5 Oxygen Free Tinned Annealed Copper, 0.6/1 kV, 67 Amp, 56/0.3 mm Strands, 4.9 mm Overall Diameter, 29.4 mm Bend Radius, Silicone Impregnated Glass Braid Insulation, Unsheathed, Black Insulation, 0 to 150 deg C, AS/NZS 1125, AS/NZS 3158, IEC 60228
| Features |
|
|---|---|
| Brand | Bambach |
| Range Name | Glass Insulated |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 22280BK |
| Bend Radius | 29.4 mm |
| Conductor Type | Class 5 Annealed Copper |
| Conductor Size | 4 mm |
| Current | 67 Amp |
| Insulation Material | Silicone Impregnated Glass Braid |
| Insulation Colour | Black |
| Overall Diameter | 4.9 mm |
| Number of Cores | 1 Core |
| Product Type | Flexible Cable High Temperature |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 3158 IEC 60228 |
| Stranding | 56/0.3 mm |
| Temperature | 0 to 150 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Wire, Single Insulated, High Temperature, 1 Core, 4 mm, Class 5 Oxygen Free Tinned Annealed Copper, 0.6/1 kV, 67 Amp, 56/0.3 mm Strands, 4.9 mm Overall Diameter, 29.4 mm Bend Radius, Silicone Impregnated Glass Braid Insulation, Unsheathed, Black Insulation, 0 to 150 deg C, AS/NZS 1125, AS/NZS 3158, IEC 60228
