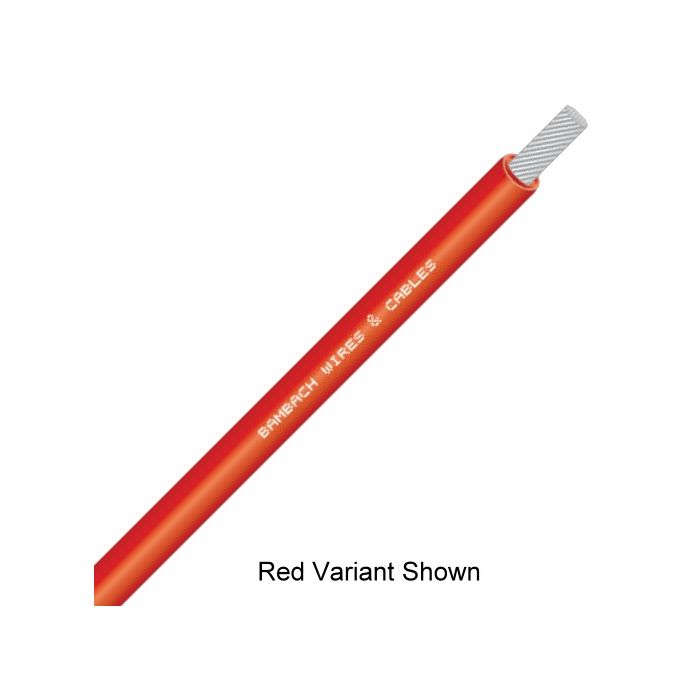

Bambach 2.5mm 1 Core Green High Temperature Flexible Wire Silicone Rubber
Bambach 2.5mm 1 Core Green High Temperature Flexible Wire Silicone Rubber
In stock
SKU
BAM18765AGN
Flexible Wire, High Temperature, 2.5 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 50 Amp, 1 Core, 50/0.25 mm Strands, 4 mm Overall Diameter, 24 mm Bend Radius, Silicone Rubber R-S-200 Insulation, Green Insulation, Unsheathed, -50 to 200 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 AS/NZS 5000.1 IEC 60228
| Features |
|
|---|---|
| Brand | Bambach |
| Range Name | Silicone Rubber 200 |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 18765AGN |
| Bend Radius | 24 mm |
| Conductor Type | Class 5 Tinned Annealed Copper |
| Conductor Size | 2.5 mm |
| Current | 50 Amp |
| Insulation Material | Silicone Rubber R-S-200 |
| Insulation Colour | Green |
| Overall Diameter | 4 mm |
| Number of Cores | 1 Core |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 AS/NZS 5000.1 IEC 60228 |
| Stranding | 50/0.25 mm |
| Temperature | -50 to 200 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Wire, High Temperature, 2.5 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 50 Amp, 1 Core, 50/0.25 mm Strands, 4 mm Overall Diameter, 24 mm Bend Radius, Silicone Rubber R-S-200 Insulation, Green Insulation, Unsheathed, -50 to 200 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 AS/NZS 5000.1 IEC 60228
