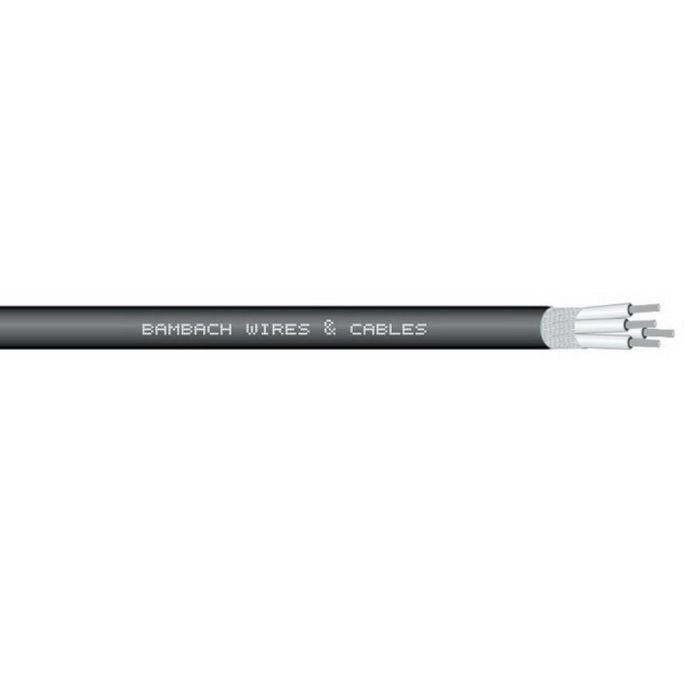

Bambach Mining Cable Type 1 Machine 6 Core Overall Screened 1.5mm 1.1/1.1kV PVC/TACS/PVC Black
Bambach Mining Cable Type 1 Machine 6 Core Overall Screened 1.5mm 1.1/1.1kV PVC/TACS/PVC Black
In stock
SKU
BAM14461BKS
Mining Cable, Type 1 Machine, 6 Core, Overall Screened, 1.5 mm, Class 5 Tinned Annealed Copper, 1.1/1.1 kV, 12 Amp, 30/0.25 mm Strands, 12.3 mm Overall Diameter, 73.8 mm Bend Radius, Conductor Resistance: DC - 12.3 Ohm/km, Tinned Annealed Copper Screen, V-90HT PVC Insulation, 5V-90 PVC Sheath, White with Black Numbered Cores, Black Sheath, 0 to 90 deg C, AS/NZS 1125, AS/NZS 1972, AS/NZS 3808
| Features |
|
|---|---|
| Brand | Bambach |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 14461BKS |
| Conductor Resistance | DC: 12.3 Ohm/km |
| Bend Radius | 73.8 mm |
| Conductor Size | 1.5 mm |
| Core Colours | White/Black Numerals |
| Conductor Type | Class 5 Tinned Copper |
| Current | 12 Amp |
| Insulation Material | V-90HT PVC |
| Number of Cores | 6 Core |
| Overall Diameter | 12.3 mm |
| Product Type | Mining Cable Type 1 Machine |
| Screen Format | Overall Screened |
| Screen Material | Tinned Annealed Copper |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 1972 AS/NZS 3808 |
| Stranding | 30/0.25 mm |
| Temperature | 0 to 90 deg C |
| Voltage | 1.1 kV |
Description
Mining Cable, Type 1 Machine, 6 Core, Overall Screened, 1.5 mm, Class 5 Tinned Annealed Copper, 1.1/1.1 kV, 12 Amp, 30/0.25 mm Strands, 12.3 mm Overall Diameter, 73.8 mm Bend Radius, Conductor Resistance: DC - 12.3 Ohm/km, Tinned Annealed Copper Screen, V-90HT PVC Insulation, 5V-90 PVC Sheath, White with Black Numbered Cores, Black Sheath, 0 to 90 deg C, AS/NZS 1125, AS/NZS 1972, AS/NZS 3808
