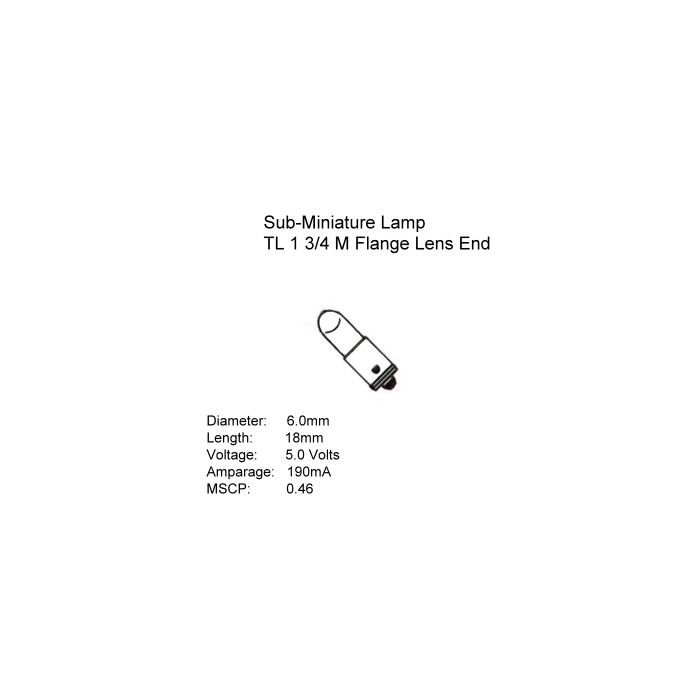

ASI Lamps Type 102 Sub-Miniature Lamp T1-3/4 5V 190mA Midget Flange Lens End 0.46 MSCP 5000 hrs C2R Filament 6x20mm
ASI Lamps Type 102 Sub-Miniature Lamp T1-3/4 5V 190mA Midget Flange Lens End 0.46 MSCP 5000 hrs C2R Filament 6x20mm
In stock
SKU
ASS102-005/190
Indicator Lamp, Sub-Miniature, T1-3/4, 5 Volt, 190 mA, Midget Flange Lens End Base, 0.46 MSCP, 5000 hrs Average Life, C2R Filament, 6 mm Overall Diameter, 20 mm Overall Length
| Brand | ASI Lamps |
|---|---|
| Range Name | Type 102 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 102-005/190 |
| Average Lamp Life | 5000 hrs |
| Base Type | Midget Flange Lens End |
| Current | 190 mA |
| Diameter | 6 mm |
| Filament | C2R |
| Lamp Shape | T1-3/4 |
| Length | 20 mm |
| MSCP | 0.46 MSCP |
| Product Type | Indicator Lamps Sub-Mini |
| Voltage | 5 Volt |
Description
Indicator Lamp, Sub-Miniature, T1-3/4, 5 Volt, 190 mA, Midget Flange Lens End Base, 0.46 MSCP, 5000 hrs Average Life, C2R Filament, 6 mm Overall Diameter, 20 mm Overall Length
