SDI 1 Core 1mm PVC/PVC Black Core White 450/750V
APEC 1mm Single Core Double Insulated Cable Black 100mtr
In stock
SKU
APEVVM113BW-1

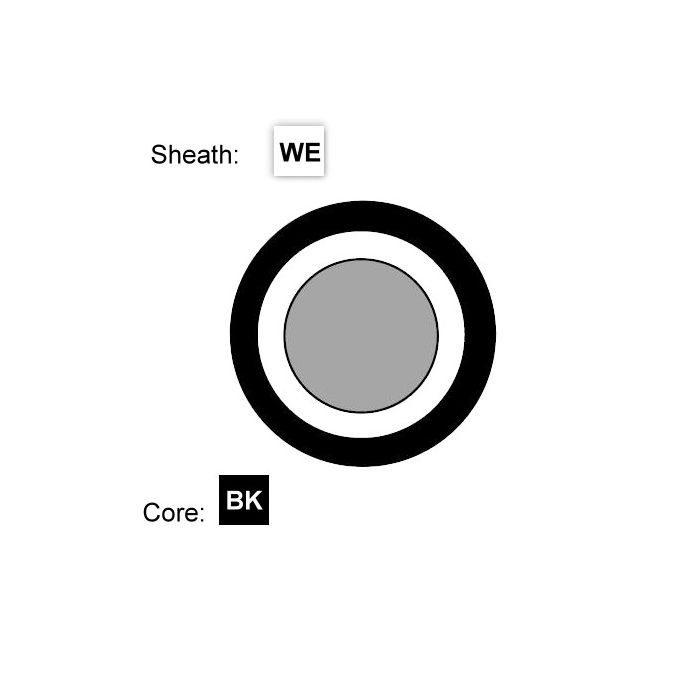

Single Core Double Insulated Cable, 1 mm, Annealed Copper, 450/750 Volt, 4.1 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, PVC Insulation, PVC Sheath, Black Core, White Sheath, 90 deg C, AS 5000.2
| Brand | APEC |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | VVM113BW-1 |
| Conductor Type | Annealed Copper |
| Core Colours | Black |
| Insulation Material | PVC |
| Insulation Thickness | 0.6 mm |
| Overall Diameter | 4.1 mm |
| Product Type | Cables TPS SDI & Flat |
| Sheath Material | PVC |
| Sheath Thickness | 0.8 mm |
| Sheath Colour | White |
| Standards | AS 5000.2 |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 1 mm |
| Number of Cores | 1 |
Description
Single Core Double Insulated Cable, 1 mm, Annealed Copper, 450/750 Volt, 4.1 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, PVC Insulation, PVC Sheath, Black Core, White Sheath, 90 deg C, AS 5000.2
