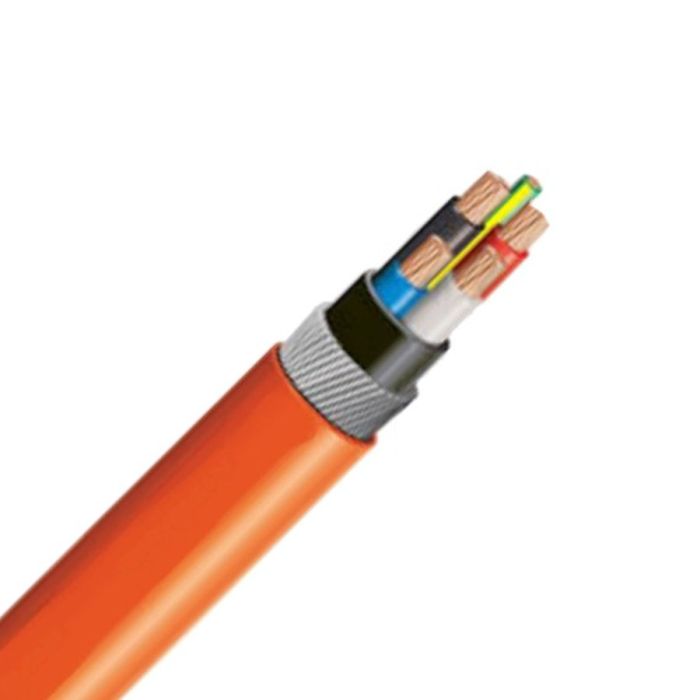

APEC 2.5 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 1mtr
APEC 2.5 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 1mtr
In stock
SKU
APEMXS205E04
Circular Cable, Armoured, 2.5 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 19.4 mm Overall Diameter, 15.5 mm Diameter Over Armour, 2.5 mm Earth Conductor, 1 mtr Length, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
| Brand | APEC |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MXS205E04 |
| Armour Material | Steel Wire |
| Conductor Type | Annealed Copper |
| Conductor Size | 2.5 mm |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Diameter Over Armour | 15.5 mm |
| Earth Conductor Size | 2.5 mm |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.7 mm |
| Length | 1 mtr |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 19.4 mm |
| Product Type | Circular Cable Armoured |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable, Armoured, 2.5 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 19.4 mm Overall Diameter, 15.5 mm Diameter Over Armour, 2.5 mm Earth Conductor, 1 mtr Length, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
