APEC 50mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr
APEC 50mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr
In stock
SKU
APEMX050E03

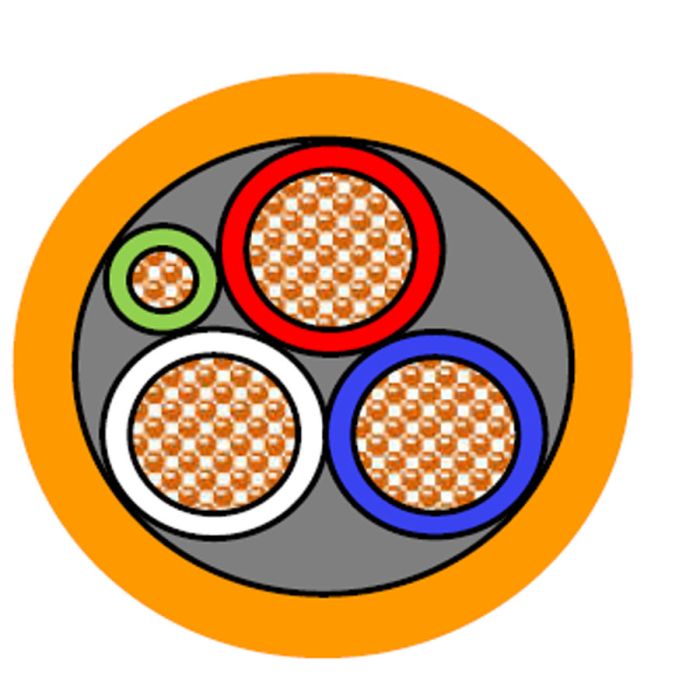

Circular Cable, Unarmoured, 50mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 28mm Overall Diameter, 16mm Earth Conductor, 100 mtr Length, 1mm + 0.7mm Earth Insulation Thickness, 1.9mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
| Brand | APEC |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MX050E03 |
| Conductor Size | 50 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 1 mm + 0.7 mm Earth |
| Insulation Material | X-90 XLPE |
| Earth Conductor Size | 16 mm |
| Length | 100 mtr |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 28 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.9 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable, Unarmoured, 50mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 28mm Overall Diameter, 16mm Earth Conductor, 100 mtr Length, 1mm + 0.7mm Earth Insulation Thickness, 1.9mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
