APEC 6mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr
APEC 6mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr
In stock
SKU
APEMVM006E045K1

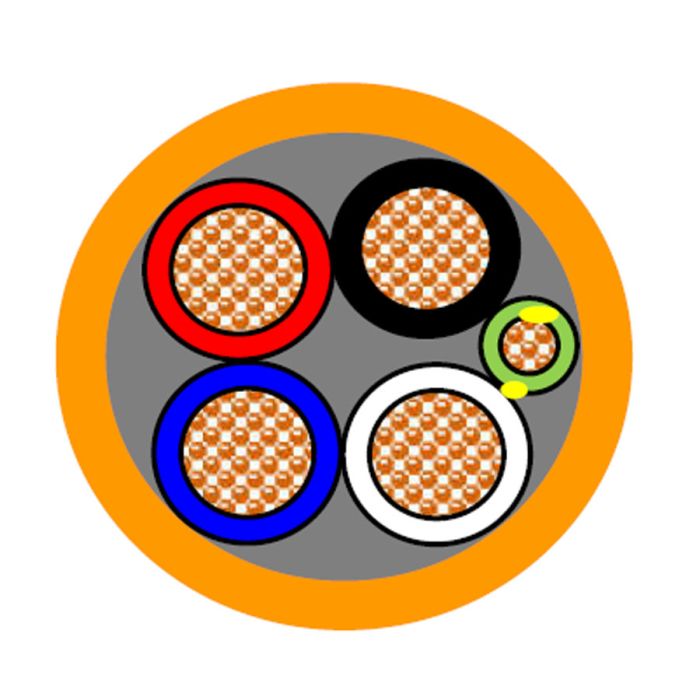

Circular Cable, Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 17.1mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 1mm Insulation Thickness, 1.8mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
| Brand | APEC |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MVM006E045K1 |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Thickness | 1 mm |
| Insulation Material | V-90 PVC |
| Earth Conductor Size | 2.5 mm |
| Length | 100 mtr |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 17.1 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable, Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 17.1mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 1mm Insulation Thickness, 1.8mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
