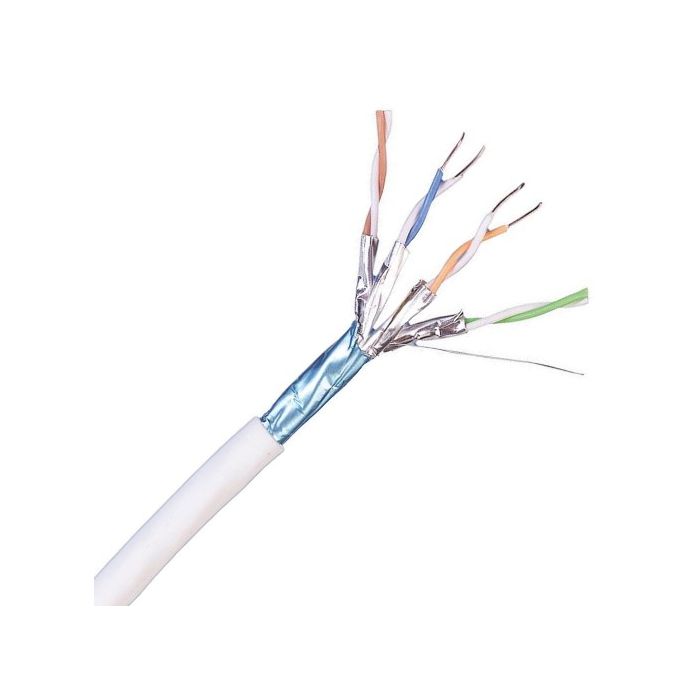

AMP Netconnect CS54Z3 F/FTP Data Cable Cat7 4 Pair 23AWG Polyolefin/LSZH White 500M
AMP Netconnect CS54Z3 F/FTP Data Cable Cat7 4 Pair 23AWG Polyolefin/LSZH White 500M
In stock
SKU
AMP1711163-1
CAT 7 Data Cable F/FTP, 80 Volt, Solid, 23 AWG, 1.5 mm Conductor Diameter, 9.38 Ohm/100m Conductor Resistance, 600 MHz Frequency Bandwidth, Cat 7 F/FTP Shielded, 4 Pair, 29.6 mm Bend Radius, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, White Sheath, 20 to 60 deg C, 500 mtr Length, 7.3 mm Outside Diameter
| Brand | AMP Netconnect |
|---|---|
| Range Name | NETCONNECT |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1711163-1 |
| Conductor Material | Bare Copper |
| Cable Type | Cat 7 F/FTP Shielded |
| Conductor Diameter | 1.5 mm |
| Conductor Resistance | 9.38 Ohm/100m |
| Bend Radius | 29.6 mm |
| Conductor Size | 23 AWG |
| Conductor Type | Solid |
| Frequency Bandwidth | 600 MHz |
| Insulation Material | Polyolefin |
| Length | 500 mtr |
| Outside Diameter | 7.3 mm |
| Pair Count | 4 Pair |
| Sheath Colour | White |
| Sheath Material | LSZH |
| Temperature | 20 to 60 deg C |
| Voltage | 80 Volt |
Description
CAT 7 Data Cable F/FTP, 80 Volt, Solid, 23 AWG, 1.5 mm Conductor Diameter, 9.38 Ohm/100m Conductor Resistance, 600 MHz Frequency Bandwidth, Cat 7 F/FTP Shielded, 4 Pair, 29.6 mm Bend Radius, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, White Sheath, 20 to 60 deg C, 500 mtr Length, 7.3 mm Outside Diameter
