AllVent In-Line Mixed Flow Fan 125mm 240 Volt 190/380 cu-m/hr 28.9/44.4dBA at 3m

AllVent In-Line Mixed Flow Fan 125mm 240 Volt 190/380 cu-m/hr 28.9/44.4dBA at 3m

In stock
SKU
ALVLINEO125ES
Add to Compare

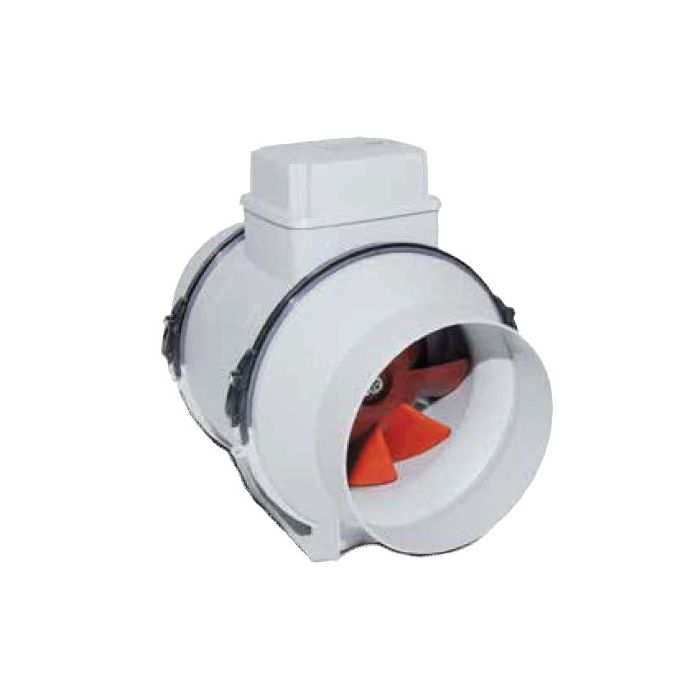

main product photo
In-Line Mixed Flow Fan, Fan Size: 125mm, 240 Volt, Motor Wattage: 24 Watt, Air Flow Rate (cu-m/hr): 190/380 cu-m/hr, Air Flow Rate (l/sec): 53/105 l/sec, Duct Size: 122mm, IP44, Fan Noise: 28.9/44.4 dBA at 3m, In-Line Mounting, Plastic, 188.5mm Length, 258mm Width, 240mm Height
More Information
More Information
Features
  • Vortice material: self-extinguishing plastic resin (self-extinguishing capability V0)
  • Nominal diameter up to 315mm
  • Two speed Vortice EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller
  • The Vortice electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval
  • Vortice speed controller devices operating with 0-10 V signal
  • Ball bearing motors for at least 30,000 hours operation without mechanical malfunction
  • Protection rating: IP44 (inline installation)
Brand AllVent
Range Name Lineo Series
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product ALV17032

Description

In-Line Mixed Flow Fan, Fan Size: 125mm, 240 Volt, Motor Wattage: 24 Watt, Air Flow Rate (cu-m/hr): 190/380 cu-m/hr, Air Flow Rate (l/sec): 53/105 l/sec, Duct Size: 122mm, IP44, Fan Noise: 28.9/44.4 dBA at 3m, In-Line Mounting, Plastic, 188.5mm Length, 258mm Width, 240mm Height

Infosheets
