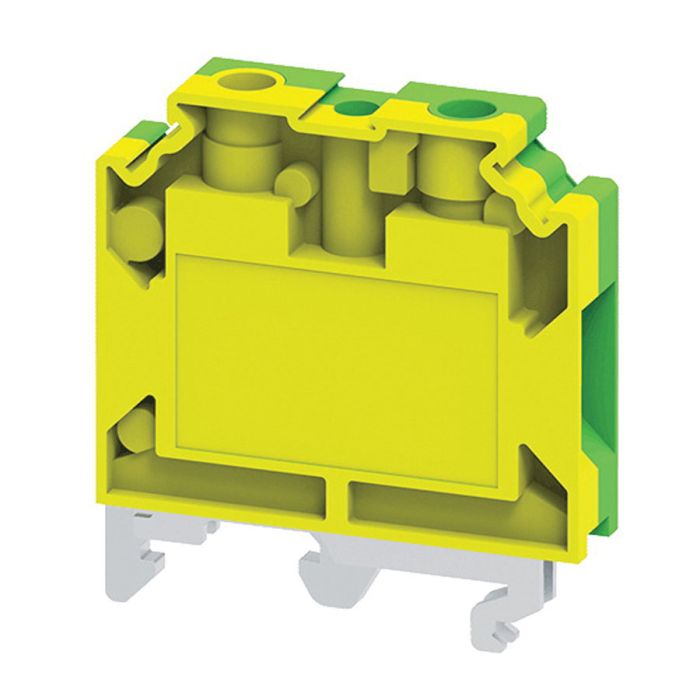

Connectwell Rail Earth Terminal Block Screwed Clamp 2 Wire 10mm Green/Yellow Polyamide 66
Connectwell Rail Earth Terminal Block Screwed Clamp 2 Wire 10mm Green/Yellow Polyamide 66
In stock
SKU
ALSCGT10U
These terminal blocks are used for Grounding/Earthing Wires. They are Green-Yellow colour coded as per industries standard. They have the same top profile as their respective feed through Terminal Blocks.
| Brand | Connectwell |
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CGT10U |
| Colour | Green/Yellow |
| Conductor Size | 0.2-10mm |
| Current Rating | 57 Amp |
| Depth | 10 mm |
| Insulation Material | Polyamide 66 |
| Height | 55.7 mm/58.2 mm/51 mm |
| Mounting Method | DIN 32/35/35-15 |
| Number of Conductors | 2 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Product Type | Rail Earth Terminal Blocks |
| Terminal Type | Screw Clamp |
| Tightening Torque | 1.2 Nm |
| Voltage Rating | 800 Volt |
| Width | 45 mm |
| Wire Entry Orientation | Side |
| Wire Strip Length | 11 cm |
| Wiring Format | 2 Conductor Through |
Description
These terminal blocks are used for Grounding/Earthing Wires. They are Green-Yellow colour coded as per industries standard. They have the same top profile as their respective feed through Terminal Blocks.
