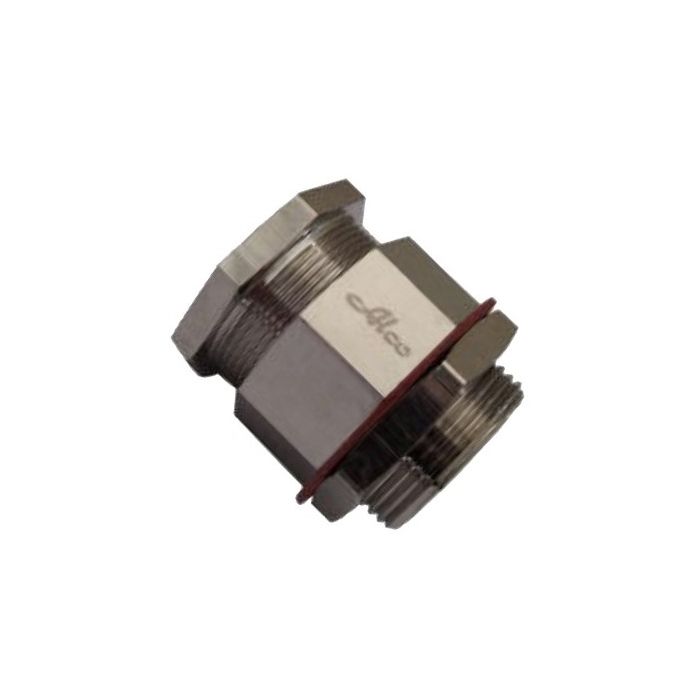

Alco Metal Cable Gland Unarmoured Weatherproof General Purpose M32x1.5 20-26.5mm Nickel Plated Brass IP66/68
Alco Metal Cable Gland Unarmoured Weatherproof General Purpose M32x1.5 20-26.5mm Nickel Plated Brass IP66/68
In stock
SKU
ALCUW32
Cable Gland Metal Unarmoured Weatherproof, M32 x 1.5 mm, 12 mm Thread Length, 1.5 mm, 20 mm Min. Sheath OD, 26.5 mm Max. Sheath OD, 37.5 mm Width Across Flats, 40.6 mm Width Across Corners, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C
| Features |
|
|---|---|
| Brand | Alco |
| Range Name | Type UW |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCUW32 |
| Min. Sheath OD | 20 mm |
| Body Material | Brass |
| Max. Sheath OD | 26.5 mm |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Product Type | Cable Glands Unarmoured |
| Thread Length | 12 mm |
| Seal Material | Thermoplastic Elastomer |
| Temperature | -20 to 80 deg C |
| Thread Size | M32 x 1.5 mm |
| Thread Pitch | 1.5 mm |
| Width Across Corners | 40.6 mm |
| Width Across Flats | 37.5 mm |
Description
Cable Gland Metal Unarmoured Weatherproof, M32 x 1.5 mm, 12 mm Thread Length, 1.5 mm, 20 mm Min. Sheath OD, 26.5 mm Max. Sheath OD, 37.5 mm Width Across Flats, 40.6 mm Width Across Corners, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C
