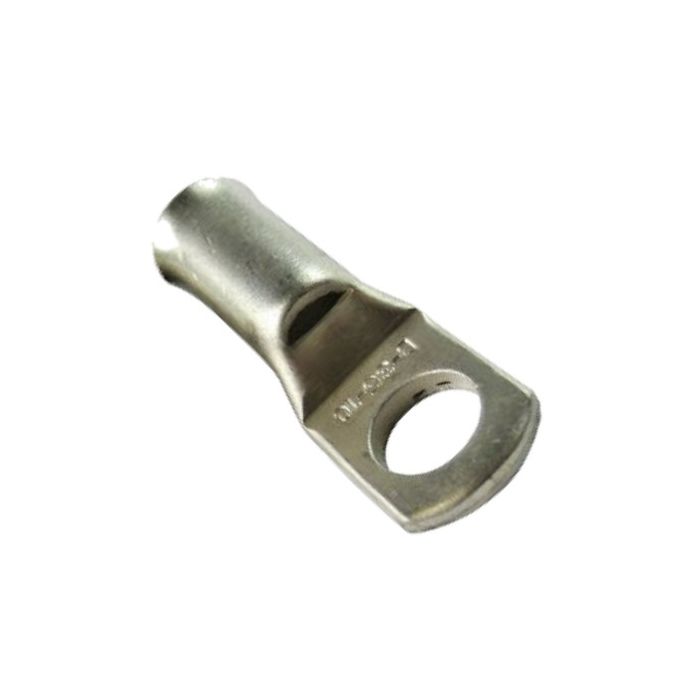

Alco Crimp Lug Bell Mouth Non-Insulated with Inspection Window Copper 70mm M12 Stud
Alco Crimp Lug Bell Mouth Non-Insulated with Inspection Window Copper 70mm M12 Stud
In stock
SKU
ALCLBM70M12/10
Bell Mouth Non Insulated Crimp Lug, 70 mm, M12 Stud, 24 mm Barrel Length, 21 mm Palm, 54 mm Overall Length, 1 Hole, 21 mm Lug Width, 3 mm Lug Thickness, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C, With Inspection Window
| Features |
|
|---|---|
| Brand | Alco |
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | PK |
| Vendor Product | ALCLBM70M12/10 |
| Barrel Length | 24 mm |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 70 mm |
| Finish | Tin Electroplated |
| Lug Thickness | 3 mm |
| Lug Width | 21 mm |
| Number of Holes | 1 Hole |
| Overall Length | 54 mm |
| Palm Size | 21 mm |
| Please Note | with Inspection Window |
| Stud Size | M12 |
| Temperature | -55 to 155 deg C |
Description
Bell Mouth Non Insulated Crimp Lug, 70 mm, M12 Stud, 24 mm Barrel Length, 21 mm Palm, 54 mm Overall Length, 1 Hole, 21 mm Lug Width, 3 mm Lug Thickness, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C, With Inspection Window
