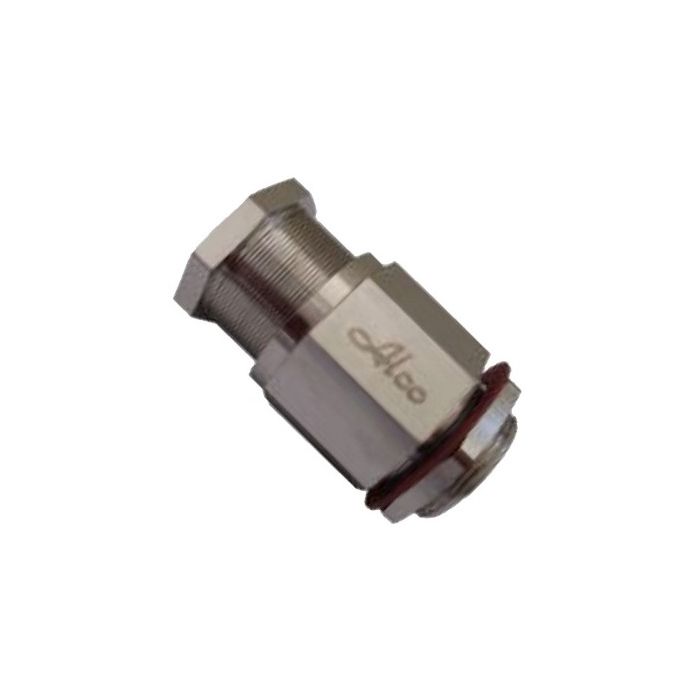

Alco Hazardous Area Cable Gland Unarmoured 25-31mm M40 IP66/68
Alco Hazardous Area Cable Gland Unarmoured 25-31mm M40 IP66/68
In stock
SKU
ALCHUW40
Hazardous Area Cable Gland, Unarmoured, M40, 15 mm Thread Length, 25 mm Min. Sheath OD, 31 mm Max. Sheath OD, 50 mm Width Across Flats, 54.1 mm Width Across Corners, For: Unarmoured Cable, Exd, I/IIC, Exe, I/II, IP66/68, Thermoset Elastomer Seal, Brass Body, Nickel Plated Finish
| Features |
|
|---|---|
| Brand | Alco |
| Range Name | Type HUW |
| Standard Pack Size | 8 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCHUW40 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Unarmoured Cable |
| IP Rating | IP66/68 |
| Hazardous Area Rating | Exd I/IIC Exe I/II |
| Min. Sheath OD | 25 mm |
| Max. Sheath OD | 31 mm |
| Product Type | Cable Glands Hazardous Area |
| Seal Material | Thermoset Elastomer |
| Thread Length | 15 mm |
| Width Across Corners | 54.1 mm |
| Thread Size | M40 |
| Width Across Flats | 50 mm |
Description
Hazardous Area Cable Gland, Unarmoured, M40, 15 mm Thread Length, 25 mm Min. Sheath OD, 31 mm Max. Sheath OD, 50 mm Width Across Flats, 54.1 mm Width Across Corners, For: Unarmoured Cable, Exd, I/IIC, Exe, I/II, IP66/68, Thermoset Elastomer Seal, Brass Body, Nickel Plated Finish
