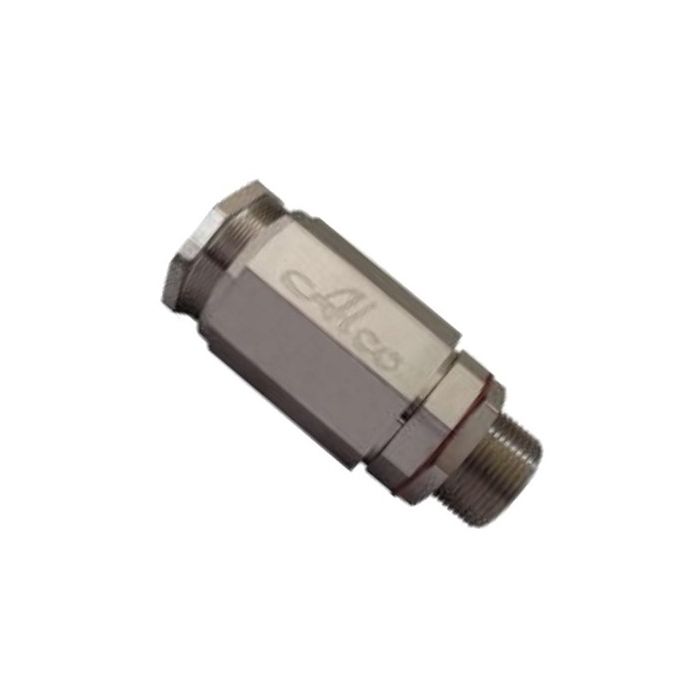

Alco Hazardous Area Cable Gland Armoured Barrier Weatherproof 81-90mm M90 IP66/68
Alco Hazardous Area Cable Gland Armoured Barrier Weatherproof 81-90mm M90 IP66/68
In stock
SKU
ALCHAW90B-B
Hazardous Area Cable Gland, Armoured, Barrier, Weatherproof, M90, 25 mm Thread Length, 81 mm Min. Sheath OD, 90 mm Max. Sheath OD, 71.5 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 3.15 mm Max. Armour Wire, Exd, Exe, DIP, 119 mm Width Across Flats, 110 mm Width Across Corners, For Armoured Cable, IP66/68, TPR Seal, Brass Body, Nickel Plated Finish
| Features |
|
|---|---|
| Brand | Alco |
| Range Name | Type HAW-B |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCHAW90B-B |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Armoured Cable |
| Hazardous Area Rating | Exd Exe DIP |
| IP Rating | IP66/68 |
| Max. Armour Wire | 3.15 mm |
| Max. Bedding OD | 71.5 mm |
| Max. Sheath OD | 90 mm |
| Min. Armour Wire | 2.5 mm |
| Min. Sheath OD | 81 mm |
| Product Type | Cable Glands Armoured Hazardous Area |
| Seal Material | TPR |
| Thread Length | 25 mm |
| Thread Size | M90 |
| Width Across Corners | 110 mm |
| Width Across Flats | 119 mm |
Description
Hazardous Area Cable Gland, Armoured, Barrier, Weatherproof, M90, 25 mm Thread Length, 81 mm Min. Sheath OD, 90 mm Max. Sheath OD, 71.5 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 3.15 mm Max. Armour Wire, Exd, Exe, DIP, 119 mm Width Across Flats, 110 mm Width Across Corners, For Armoured Cable, IP66/68, TPR Seal, Brass Body, Nickel Plated Finish
