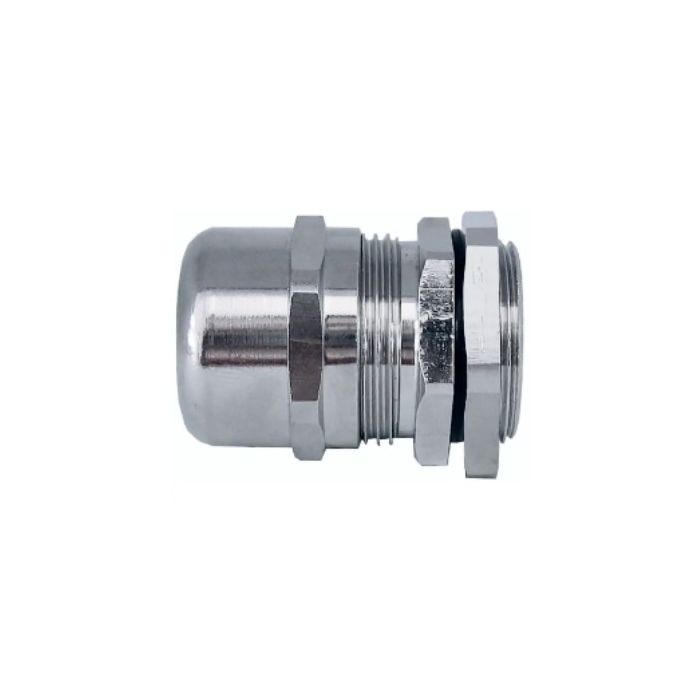

Alco Metal Cable Gland Unarmoured Shutter Type General Purpose M63 37-53mm Nickel Plated Brass IP66/68
Alco Metal Cable Gland Unarmoured Shutter Type General Purpose M63 37-53mm Nickel Plated Brass IP66/68
In stock
SKU
ALCBRGM63L
Metal Cable Gland, Unarmoured, Shutter Type, General Purpose, M63, 18 mm Thread Length, 1.5 mm Pitch, 37 mm Min. Sheath OD, 53 mm Max. Sheath OD, For Unarmoured Cable, 64 mm Width Across Flats, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, -40 to 100 deg C
| Features |
|
|---|---|
| Brand | Alco |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCBRGM63L |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Unarmoured Cable |
| IP Rating | IP66/68 |
| Max. Sheath OD | 53 mm |
| Min. Sheath OD | 37 mm |
| Product Type | Cable Glands Unarmoured |
| Seal Material | Neoprene |
| Temperature | -40 to 100 deg C |
| Thread Length | 18 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M63 |
| Width Across Flats | 64 mm |
Description
Metal Cable Gland, Unarmoured, Shutter Type, General Purpose, M63, 18 mm Thread Length, 1.5 mm Pitch, 37 mm Min. Sheath OD, 53 mm Max. Sheath OD, For Unarmoured Cable, 64 mm Width Across Flats, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, -40 to 100 deg C
