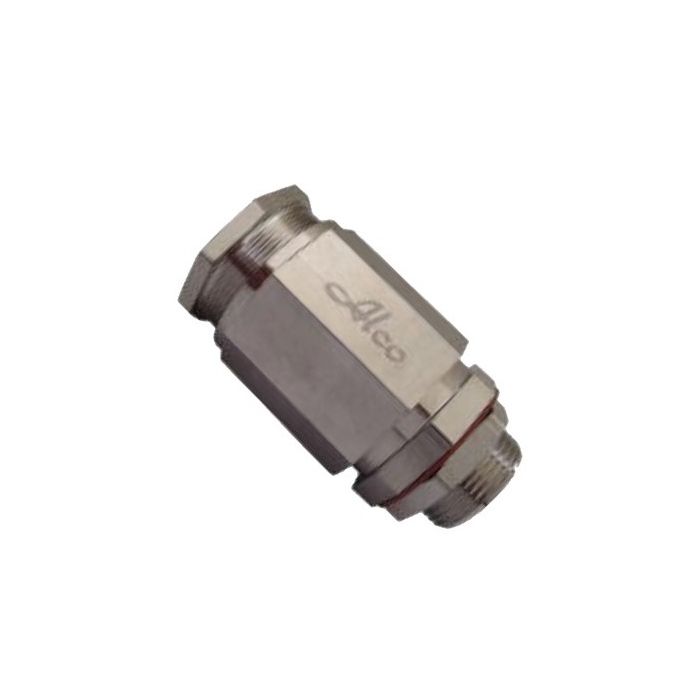

Alco Metal Cable Gland Armoured General Purpose 10.5-15.5mm M20 IP66/68
Alco Metal Cable Gland Armoured General Purpose 10.5-15.5mm M20 IP66/68
In stock
SKU
ALCAW20SB
Cable Gland Weatherproof Armoured General Purpose, M20, 12 mm Thread Length, 10.5 mm Min. Sheath OD, 15.5 mm Max. Sheath OD, 10 mm Max. Bedding OD, 0.8 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, 24 mm Width Across Flats, 26 mm Width Across Corners, 13 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C, 11.5 mm Overall Length
| Features |
|
|---|---|
| Brand | Alco |
| Range Name | Type AW |
| Standard Pack Size | 14 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCAW20SB |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Max. Armour Wire | 1.25 mm |
| Max. Bedding OD | 10 mm |
| Max. Sheath OD | 15.5 mm |
| Min. Armour Wire | 0.8 mm |
| Min. Sheath OD | 10.5 mm |
| Overall Length | 11.5 mm |
| Temperature | -20 to 80 deg C |
| Seal Material | Thermoplastic Elastomer |
| Thread Length | 12 mm |
| Thread Size | M20 |
| Torque Rating | 13 Nm |
| Width Across Corners | 26 mm |
| Width Across Flats | 24 mm |
Description
Cable Gland Weatherproof Armoured General Purpose, M20, 12 mm Thread Length, 10.5 mm Min. Sheath OD, 15.5 mm Max. Sheath OD, 10 mm Max. Bedding OD, 0.8 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, 24 mm Width Across Flats, 26 mm Width Across Corners, 13 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C, 11.5 mm Overall Length
