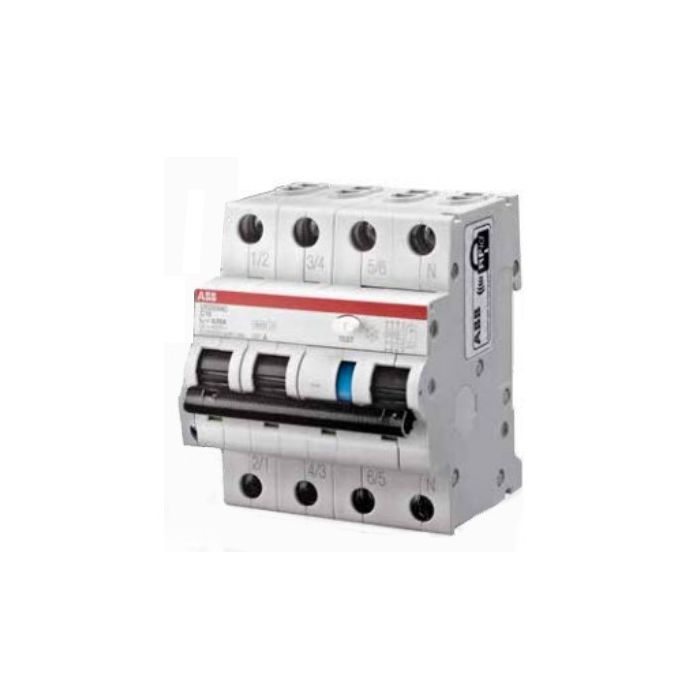

ABB Combination RCD Circuit Breaker RCBO 3P+N 13 Amp 400-415VAC 6 kA 4Module
ABB Combination RCD Circuit Breaker RCBO 3P+N 13 Amp 400-415VAC 6 kA 4Module
In stock
SKU
ABBDS203NCC13A100
Combination RCD Circuit Breaker RCBO, 13 Amp, 400-415 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 100 mA, Number of Poles: 3P + N, Number of Modules: 4, Trip Characteristic: C Curve, 25 mm Flexible/Rigid Terminal Connection, IP2X, IP4X,-25 to 55 deg C, 0.085 m Height, 0.071 m Width, 0.069 m Depth
| Brand | ABB |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DS203NCC13A100 |
| Current | 13 Amp |
| Depth | 0.069 mtr |
| Height | 0.085 mtr |
| Frequency | 50/60 Hz |
| IP Rating | IP2X/4X |
| Interrupt Capacity | 6 kA |
| Modules | 4 Module |
| Number Of Poles | 3 Pole |
| Product Type | Combination RCBO |
| Terminal Connection | 25 sq-mm Flexible/Rigid |
| Temperature | -25 to 55 deg C |
| Trip Characteristic | C Curve |
| Voltage | 400-415 Volt |
| Trip Sensitivity | 100 mA |
| Width | 0.071 mtr |
Description
Combination RCD Circuit Breaker RCBO, 13 Amp, 400-415 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 100 mA, Number of Poles: 3P + N, Number of Modules: 4, Trip Characteristic: C Curve, 25 mm Flexible/Rigid Terminal Connection, IP2X, IP4X,-25 to 55 deg C, 0.085 m Height, 0.071 m Width, 0.069 m Depth
