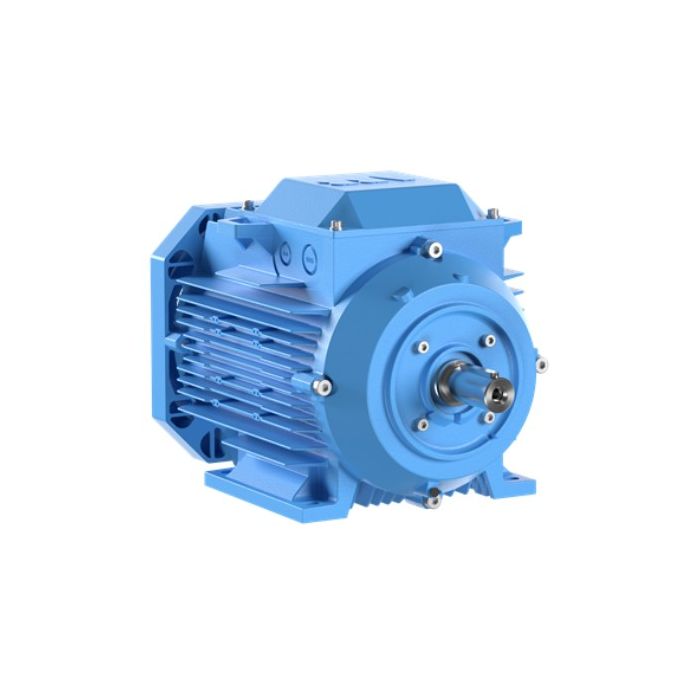

ABB Electric Motor Squirrel Cage Induction 4P 0.25kW 3Ph 460Y/230D/400YV 71A Frame Foot Mount
ABB Electric Motor Squirrel Cage Induction 4P 0.25kW 3Ph 460Y/230D/400YV 71A Frame Foot Mount
In stock
SKU
ABB3GAA072311-ASE
Electric Motor Squirrel Cage Induction, 460 Y/230 D/400 Volt, 0.7 Y/1.31 D/0.76 Amp, 0.25 kW, 50/60 Hz, 3 Phase, 1743 Y/1430 D/1430 rpm, 4 Pole, IP55, Frame: 71A, Shaft Size: 14 mm Drive End, 11 mm Non-Drive End, Duty Cycle: S1, Ball Bearing, Torque: 1.39 Y/1.67 D/1.67 Y N/m, Foot Mount, Insulation Class: ICLF, 40 deg C, Aluminium, Munsell Blue, 267 mm Length x 130 mm Width x 180 mm Height, Please Note: Terminal box top
| Features |
|
|---|---|
| Brand | ABB |
| Range Name | M3AA |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 3GAA072311-ASE |
| Current | 0.7 Y/1.31 D/0.76 Y A |
| Colour | Munsell Blue |
| Bearing Type | Ball |
| Frame | Size 71A |
| Frequency | 50/60 Hz |
| Height | 180 mm |
| Horsepower | 0.25 kW |
| Insulation Class | ICLF |
| IP Rating | IP55 |
| Length | 267 mm |
| Material | Aluminium |
| Mounting Method | Foot |
| Number Of Poles | 4 Pole |
| Phase | 3 Phase |
| Please Note | Terminal box top |
| Product Type | Motors SCIM |
| Shaft Size | 14 mm Drive End/11 mm Non-Drive End |
| Speed | 1743 Y/1430 D/1430 Y rpm |
| Temperature | 40 deg C |
| Torque Rating | 1.39 Y/1.67 D/1.67 Y N/m |
| Voltage | 460Y-230D-400Y Volt |
| Width | 130 mm |
Description
Electric Motor Squirrel Cage Induction, 460 Y/230 D/400 Volt, 0.7 Y/1.31 D/0.76 Amp, 0.25 kW, 50/60 Hz, 3 Phase, 1743 Y/1430 D/1430 rpm, 4 Pole, IP55, Frame: 71A, Shaft Size: 14 mm Drive End, 11 mm Non-Drive End, Duty Cycle: S1, Ball Bearing, Torque: 1.39 Y/1.67 D/1.67 Y N/m, Foot Mount, Insulation Class: ICLF, 40 deg C, Aluminium, Munsell Blue, 267 mm Length x 130 mm Width x 180 mm Height, Please Note: Terminal box top
