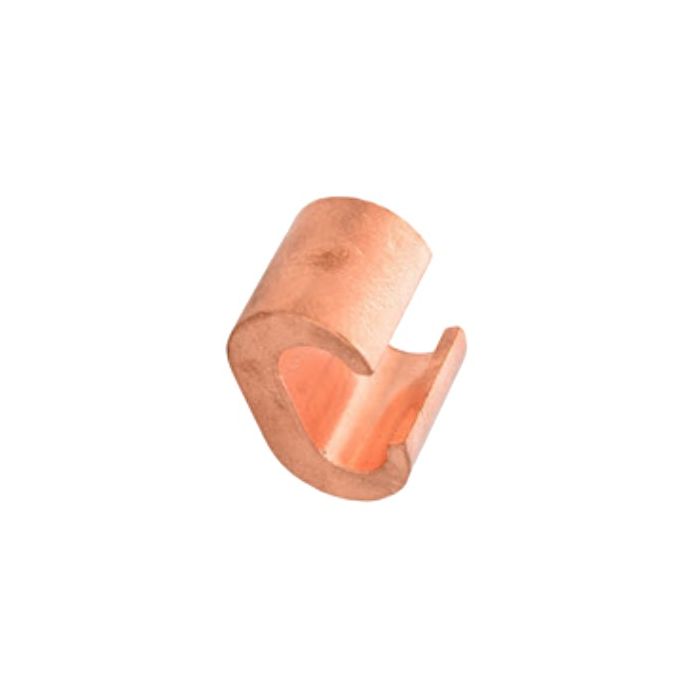

CJS C Connector Conventional 50-70mm Copper
CJS C Connector Conventional 50-70mm Copper
In stock
SKU
CJS-CACC70
C-Connector Conventional, 50-70 mm, 1 Conductors, 200 Mpa Tensile Strength, 40% Ductile Rating, 99.7% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, MC70-C, Copper Body, Copper, -55 to 155 deg C, 34 mm Height, 28 mm Width, 21 mm Depth, 1 Pack
| Brand | CJS |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CJS-CACC70 |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductivity | 99.7% IACS |
| Conductor Size | 50-70mm |
| Crimping Die | MC70-C |
| Depth | 21 mm |
| Ductile Rating | 40% |
| Height | 34 mm |
| Pack Size | 1 Pack |
| Number of Conductors | 1 |
| Resistivity | 1.738 micro-Ohm/cm |
| Tensile Strength | 200 MPa |
| Temperature | -55 to 155 deg C |
| Width | 28 mm |
Description
C-Connector Conventional, 50-70 mm, 1 Conductors, 200 Mpa Tensile Strength, 40% Ductile Rating, 99.7% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, MC70-C, Copper Body, Copper, -55 to 155 deg C, 34 mm Height, 28 mm Width, 21 mm Depth, 1 Pack
